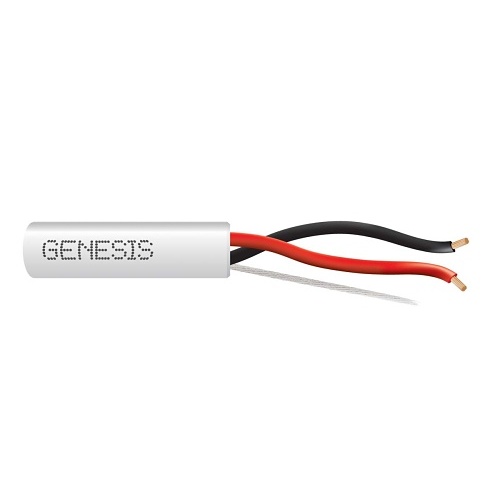

Genesis 31215512 16/2 Stranded Unshielded Cable, Plenum, CMP, FT6, 500' (152.4 m) Pull Box, Natural
31215512
|WG-31215512
Color: Natural
Cable Length: 500'
Package Type: Pull Box
Solid or Stranded: Stranded
Number of Conductors: 2
American Wire Gauge: 16AWG
Shop all Genesis
Genesis 31215512 16/2 Stranded Unshielded Cable, Plenum, CMP, FT6, 500' (152.4 m) Pull Box, Natural
31215512 | WG-31215512
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Genesis Unshielded Multiconductor Cables offer a versatile solution for various signal and limited-power transmission applications.
Main Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Plenum PVC jacket
- Durable rip cord for efficient jacket stripping and removal
- Countdown Length Markings for easy tracking of usage and remaining cable
- Rated for 300 Volts
- Rated for -20 °C to 75 °C
- REACH/RoHS Compliant
General Information
Name: Genesis 31215512 16/2 Stranded Unshielded Cable, Plenum, CMP, FT6, 500' (152.4 m) Pull Box, Natural
Category: Genesis, Wire & Cable, Security & Access Control Cables, Plenum Unshielded Cables
UPC Code: 619172015141
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number WG-31215512 Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 31215512 Packaged Quantity 1 Product Model 31215512 Product Name 31215512 Control Cable Product Type Access & Security Cable
American Wire Gauge 16AWG Cable Rating Plenum Cable Type Multi-conductor, Multi-pair Conductor Count 1 Conductor Material Bare Copper Core/Cladding Diameter 16/2 Device Supported Burglar Alarm, Intercom, Phone, Speaker Jacket Material LS PVC Jacket Type Riser Material Bare Copper Number of Conductors 2 Number of Pairs 1 Shielding No Solid or Stranded Stranded
TAA Compliant Yes
Cable Length 500' Color Natural Insulation Material LS-PVC Package Type Pull Box Weight 12.60 lb
Limited Warranty 3-Year
Country of Origin US Environmental Certification RoHS Features Stranded, Unshielded Indoor/Outdoor Indoor
