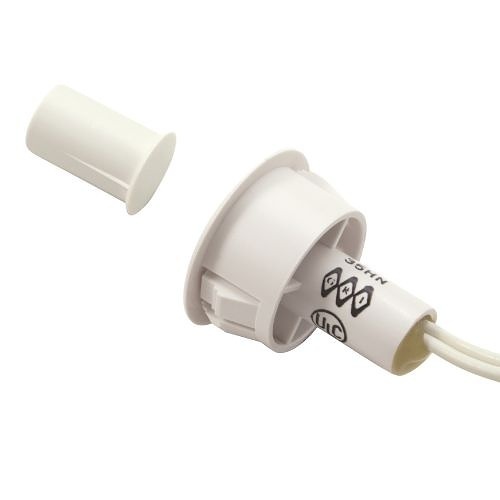

GRI 120T-12 120T Series 3/4" Switch 3/8" Magnet Recessed Switch Set, Standard Gap, 10W, 200VDC, 0.50A, Closed, N/O, A, Brown
120T-12
|GI-120T12B
GRI 120T-12 120T Series 3/4" Switch 3/8" Magnet Recessed Switch Set, Standard Gap, 10W, 200VDC, 0.50A, Closed, N/O, A, Brown
120T-12 | GI-120T12B
Please sign in to view pricing, availability, and to add to cart.
Product Overview
The 120T/4473 requires that a 3/4" hole be drilled for the switch and 3/8" hole for the magnet. The 3/4" switch mounting is desirable since the extra wire and connections can be more easily inserted into the larger hole for concealment. Also, should the need arise for testing or replacement, it would be easy to pull the switch, extend the extra wire and access the original connections.
Installation is further enhanced by using a smaller 3/8" diameter magnet to avoid the need to center a larger hole in a 1" to 1 1/2" thick door or window. This will allow you to offset the magnet should it be required.
The 120T/4473 switch set was developed for and should only be used in openings with wooden or aluminum frames.
Main Features
- Available with new rare earth Magnets
- Longer Leads, Zip Cords, or Jacketed Cable on Request
- Built-in Resistors and Diodes Available on Request
- Switches or Magnets are Available Separately
- Supervisory Loops Available
General Information
Specifications
ADI Part Number GI-120T12B Brand Name George Risk Industries Manufacturer George Risk Industries Manufacturer Part Number 120T-12-B Product Model 120T-12 Product Name Magnetic Contact Product Series 120T Product Type Magnetic Contact
Connectivity Technology Wired Standard Gap 0.50"
Color Brown Material Aluminum, Wood
Power Source DC Power
Contact Type NO (Normally Open) Installation Type Hybrid (DIY + Professional) Mount Type Recessed Mount
ADI Part Number Replaces 944TSP-BR Model Number Replaces 944TSP-BR
Limited Warranty Lifetime Warranty
Additional Information - 12" leads
- 3/4" switch
- 3/8" M-5 magnet
Features 12" leads, 3/4" switch, 3/8" M-5 magnet
