GRI PBF-100 3/4" Diameter 1 1/2" Push Button Switch with Flange, 10W, 200VDC, 0.50 Amp, Closed Loop, N/O, A, White
PBF-100|GI-PBF100W
Color: White
GRI PBF-100 3/4" Diameter 1 1/2" Push Button Switch with Flange, 10W, 200VDC, 0.50 Amp, Closed Loop, N/O, A, White
PBF-100|GI-PBF100W
Color: White
Key Features
- The Push Button or Plunger actuated PB series was developed in response to installer request for a direct replacement of an existing and problematic mechanical type contact
- The PB-100 is a press fit design and eliminates the screw mounted flange
- A terminal connection is offered on most models and this option can be added by including aT at the end of the part number, PB-100T. Mounting hardware is also included where applicable
Key Features
- The Push Button or Plunger actuated PB series was developed in response to installer request for a direct replacement of an existing and problematic mechanical type contact
- The PB-100 is a press fit design and eliminates the screw mounted flange
- A terminal connection is offered on most models and this option can be added by including aT at the end of the part number, PB-100T. Mounting hardware is also included where applicable
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- The Push Button or Plunger actuated PB series was developed in response to installer request for a direct replacement of an existing and problematic mechanical type contact
- The PB-100 is a press fit design and eliminates the screw mounted flange
- A terminal connection is offered on most models and this option can be added by including aT at the end of the part number, PB-100T. Mounting hardware is also included where applicable

George Risk Industries
GRI PBF-100 3/4" Diameter 1 1/2" Push Button Switch with Flange, 10W, 200VDC, 0.50 Amp, Closed Loop, N/O, A, White
PBF-100 | GI-PBF100W
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

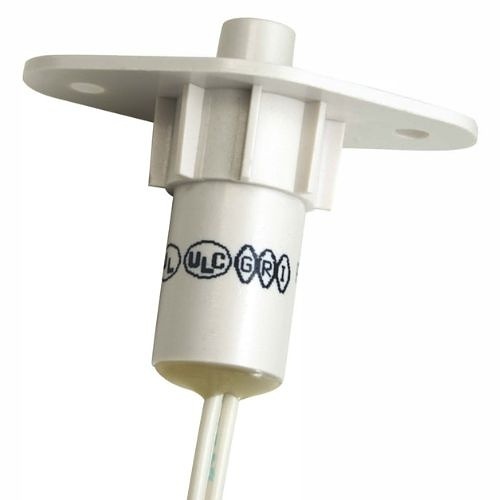

The Push Button or Plunger actuated PB series was developed as a direct replacement of an existing and problematic mechanical type contact. The PBF flange push button can be installed without re-drilling or redesigning the original installation. The sealed contacts of the reed switch insure a long service life. Plunger actuated reed switches have become so popular on new installations that many variations are now being produced.
Main Features
- The Push Button or Plunger actuated PB series was developed in response to installer request for a direct replacement of an existing and problematic mechanical type contact
- The PB-100 is a press fit design and eliminates the screw mounted flange
- A terminal connection is offered on most models and this option can be added by including aT at the end of the part number, PB-100T. Mounting hardware is also included where applicable
- Lifetime Warranty
- UL and ULC Approved
General Information
Name: GRI PBF-100 3/4" Diameter 1 1/2" Push Button Switch with Flange, 10W, 200VDC, 0.50 Amp, Closed Loop, N/O, A, White
Category: George Risk Industries, Intrusion, Alarm Contacts, Plunger & Toggle Switches
UPC Code: 697625017850
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number GI-PBF100W Brand Name George Risk Industries Manufacturer George Risk Industries Manufacturer Part Number PBF-100-W Product Model PBF-100 Product Name PBF-100 Plunger Switch Product Series PBF Product Type Plunger Switch
-
Color White
-
Contact Type Closed Loop, N.O. Installation Type Hybrid
-
Limited Warranty Lifetime
-
Additional Information - Spacers and mounting hardware included
- Plated contacts resist sticking or freezing
- 3/4" x 1.5" With screw down flange
- Recessed magnetic contact
- Hermetically sealed
- 12" #22AWG leads
Country of Origin US
