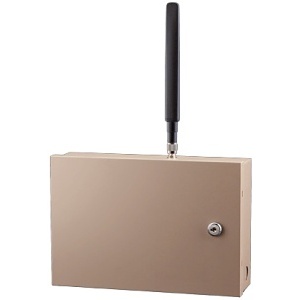

Telguard TG-7FS Universal 5G LTE-M Primary / Backup Commercial Fire Cellular Alarm Communicator, Verizon

TG-7FS-V | AD-TG7FSV

Please sign in to view pricing, availability, and to add to cart.

Overview

Specifications

Documents

Product Overview

The Telguard TG-7FS Universal 5G LTE-M Commercial Fire Cellular Alarm Communicator can work as a primary or backup solution in commercial fire applications. The TG-7FS (designed for Verizon) meets all UL Standards for Commercial Fire systems as either a backup pathway to a phone connection, or Sole Path, replacing all other connections. The TG-7FS transmits full data from intrusion and fire systems to central stations using the nationwide Verizon cellular network in the US. Pair with the TG-PEM accessory for DACTless connection to any panel.

Main Features

Certified for use on the Verizon 5G LTE-M network for nationwide coverage in the US
Serves as either primary or backup alarm communicator (can monitor existing phone line)

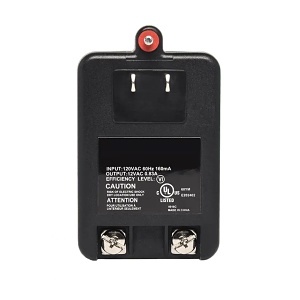

Powers directly from the fire panel's 12/24V auxiliary power supply or via plug-in transformer (included)
Supports virtually all alarm formats using dial capture for universal panel compatibility; Contact ID, SIA, Radionics Modem formats, Pulse 4x2/3x1, DMP, Sonitrol, etc.
Interfaces with panel over a single DACT connection for universal compatibility (use TG-PEM accessory when panel has no DACT)
Compatible with the TG-PEM for DACT-less connectivity to the panel (Fire Alarm, Trouble, and Supervisory panel outputs)
Link Supervision available in 60 and 5min frequencies to meet any AHJ requirements for Sole Path connectivity
2-Supervisory outputs and 1-Trip input available

General Information

Name: Telguard TG-7FS Universal 5G LTE-M Primary / Backup Commercial Fire Cellular Alarm Communicator, Verizon

Category: Telguard, Fire, Fire Control Panels, Alarm Communicators

UPC Code: 702054304294

Country of Origin: United States. Country of origin is subject to change.

Specifications

: ADI Part Number AD-TG7FSV Brand Name Telguard Manufacturer Telular Corporation Manufacturer Part Number TG-7FS-V Product Line Telguard Commercial Fire Product Model TG-7FS-V Product Name TG-7FS-V 5G LTE-M Universal Commercial Fire Alarm Communicator, Verizon Product Series TG-7 Fire Product Type Fire Alarm Control/Communicator

: Cellular Generation 5G LTE-M Connectivity Technology Wireless Power Consumption 110mA, 18mA

: Communication Technology GSM

: ADI Part Number Replaces AD-TG7LVF02 Model Number Replaces TG7LVF02

: Color Red Depth 3.5" Height 7.5" Width 11.5"

: Input Voltage 12V AC, 24V AC

: Compatibility Verizon Country of Origin US Features Battery Backup Package Contents TG-7FS-V 5G LTE-M Universal Commercial Fire Alarm Communicator, Verizon AC Adapter with Backup Battery
