Product Overview
The P4S5O from Speco is a 5-port IP65 rated 4 port PoE switch.
General Information
Name : Speco P4S5O 5-Port Outdoor PoE Switch, White , Speco Technologies
Category : Network Switches
UPC Code : 030519024334
Country of Origin : China. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : SO-P4S5O
Brand Name : Speco
Manufacturer : Speco Technologies
Manufacturer Part Number : P4S5O
NDAA Compliant : yes
Product Model : P4S5O
Product Name : P4S5O Ethernet Switch
Product Type : Ethernet Switch
Technical Information
Media Type Supported : Twisted Pair
Power Consumption : 75W
Interfaces/Ports
Network (RJ-45) : Yes

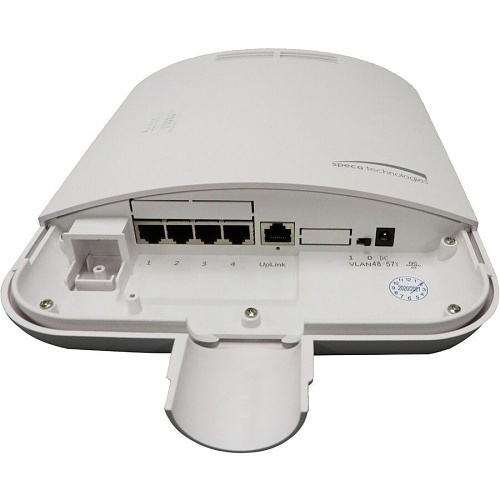

Port/Expansion Slot Details : 5 x Gigabit Ethernet PoE
Total Number of Network Ports : 5
Uplink Port : Yes
Media & Performance
Network Technology : 10/100Base-T
Network & Communication
Ethernet Technology : Fast Ethernet
Layer Supported : 2
Networking Standards : IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Physical Characteristics
Depth : 2"
Depth (mm) : 50.8
Form Factor : Compact, Standalone
Height : 12"
Height (mm) : 304.8
Width : 8.7"
Width (mm) : 220.98
Power Description
Input Voltage : 48V DC, 57V DC
Input Voltage (V DC) : 48, 57
PoE (RJ-45) Port : Yes
Power Consumption (W) : 75.000
Power Source : Power Supply
Miscellaneous

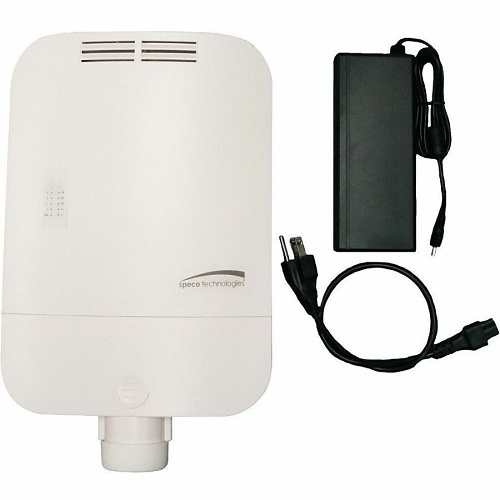

Package Contents : <ul><li> P4S5O Ethernet Switch</li><li> Power supply</li></ul>
