Product Overview
Housing equipment with side to side airflow creates many challenges for IT and facility managers, particularly in regards to cooling. Because most enclosures are designed for a front to back airflow pattern, it is difficult to maintain ideal operating temperatures on side to side airflow equipment. The Rack Side Air Distribution Unit is a 2U rack mountable air distribution product for networking equipment or servers with side to side airflow. It pulls in conditioned air from the front of the rack and distributes it to the side air intake of the networking equipment.
General Information

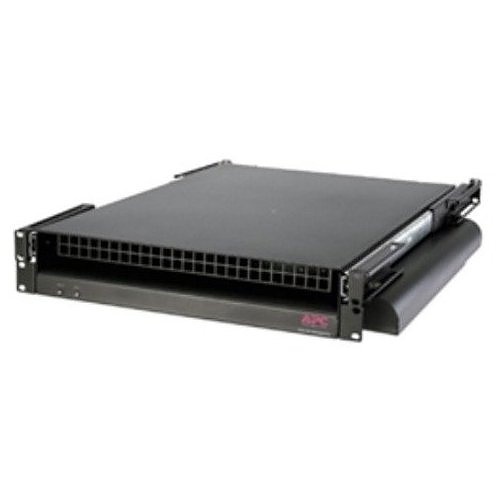

Name : APC ACF201BLK Rack Side Air Distribution 2U 115V 60HZ , APC by Schneider Electric
Category : Rack Cabinets & Frames
UPC Code : 731304227007
Specifications
General Information
ADI Part Number : 2G-ACF201BLK
Brand Name : APC by Schneider Electric
Manufacturer : Schneider Electric SA
Manufacturer Part Number : ACF201BLK
Product Model : ACF201BLK
Product Name : ACF201BLK Rack Side Air Distribution System
Product Type : Airflow Cooling System
Weight (Approximate) (g) : 14560
Technical Information
Maximum Air Flow : 260 CFM
Maximum Air Flow (mL/min) : 7362380.116
Power Consumption : 150W
Physical Characteristics
Application/Usage : IT
Color Family : Black
Compatible Rack Height : 2U
Depth : 26.3"
Depth (mm) : 669
Form Factor : Rack mount
Height : 3.4"
Height (mm) : 87
Weight (Approximate) : 32.10 lb
Width : 17"
Width (mm) : 431
Power Description
Input Voltage : 120V DC
Input Voltage (V DC) : 120
Power Consumption (W) : 150.000
Warranty
Limited Warranty : 2 year
Miscellaneous
Environmental Certification : ROHS
Environmentally Friendly : Yes
Package Contents : <ul><li>ACF201BLK Rack Side Air Distribution System</li><li>Installation Guide</li><li>Rack Mounting Brackets</li><li>User Manual</li></ul>
