Product Overview
Create pixel perfect imagery with the high-end panel quality of the new fully commercial NEC P Series large format displays. By implementing premium features and focusing on creating impressionable digital signage experiences, the P series gives customers an elite display option with its one-of-a-kind wide color gamut commercial panel coupled with the proprietary SpectraView Engine capabilities while also allowing customers the modularity possibilities to customize their product based on their needs and application. The new series contain a full metal mechanical chassis, allowing for a more robust design necessary for commercial applications while maintaining the attractive aesthetics that allow the focus of onlookers to be on what matters - the message. This display also contains the NEC MediaPlayer integrated into the display via the Raspberry Pi Compute Module 4. This allows for seamless content playback through integrated System on a Chip capabilities. Robust connectivity options allow customers to have up-to-date connectivity options while also allowing for enhanced daisy chain capabilities when tying displays together for video or control signal distribution. The NEC P series boasts 700 cd/m2 brightness which is ideal for a majority of high end digital signage applications intransportation, restaurants, command and control, finance and healthcare environments when high-end and feature rich displays are necessary to convey important messaging.
General Information
Name : Sharp NEC P555-MPI4E 55" Ultra High-Definition LED, Professional Display with Integrated SoC MediaPlayer , Sharp NEC Display Solutions
Category : Digital Signage Displays
UPC Code :
Specifications
General Information
ADI Part Number : 1S-P555MPI4E
Brand Name : NEC Display
Manufacturer : Sharp NEC Display Solutions Ltd.
Manufacturer Part Number : P555-MPI4E
Product Line : MultiSync
Product Model : P555-MPI4E
Product Name : MultiSync P555-MPI4E Digital Signage Display/Appliance
Product Series : Raspberry Pi
Product Type : Appliance, Digital Signage Display
Weight (Approximate) (g) : 27600
Technical Information
Bezel Width (Bottom) : 0.61"
Bezel Width (Bottom) (mm) : 15.494
Bezel Width (Left) : 0.49"
Bezel Width (Left) (mm) : 12.446
Bezel Width (Right) : 0.49"
Bezel Width (Right) (mm) : 12.446
Bezel Width (Top) : 0.47"
Bezel Width (Top) (mm) : 11.938
High Dynamic Range (HDR) : Yes
High Dynamic Range (HDR) Type : HDR10
Pixel Pitch (mm) : 0.32
Screen Size (mm) : 1397
USB : Yes
Display & Graphics
Backlight Technology : Edge LED
Display Resolution : 3840 x 2160
Pixel Pitch : 12.6 mil
Screen Size : 55"

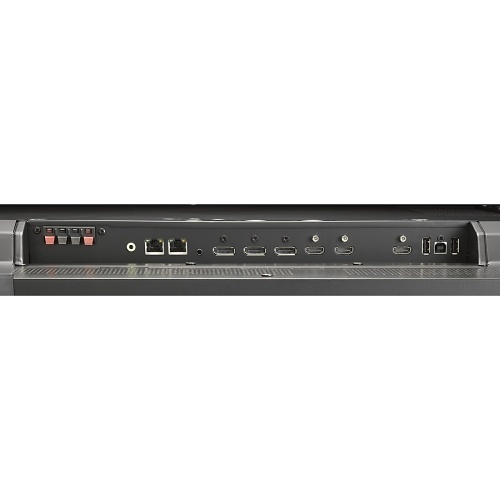

Interfaces/Ports
DisplayPort : Yes
HDMI : YES
Number of DisplayPorts : 4
Number of HDMI Inputs : 4
Serial : Yes
Network & Communication
Ethernet : Yes
Physical Characteristics
Depth : 2.4"
Depth (mm) : 60.96
Height : 28.1"
Height (mm) : 713.74
VESA Mount Standard : 300 x 300
Weight (Approximate) : 60.85 lb
Width : 48.8"
Width (mm) : 1239.52
Product Information
Display Screen Type : LCD
Mount Type : Table Mount, Wall Mount
Video
Brightness : 700 nit
Brightness (Nit) : 700
Color Depth : 10-bit
Scan Format : 2160p
Warranty
Limited Warranty : 5 year
Miscellaneous
Energy Star : Yes
Environmental Certification : ENERGY STAR 8.0
Environmentally Friendly : Yes
