Product Overview
The X Plus cameras feature a modular design that makes installation and maintenance simpler than ever. With extended tilt range, DIS and shock detection with gyro sensor, motorized PTRZ, and optional skin covers, you will soon discover why X Plus is one of the most versatile camera lines on the market.
General Information

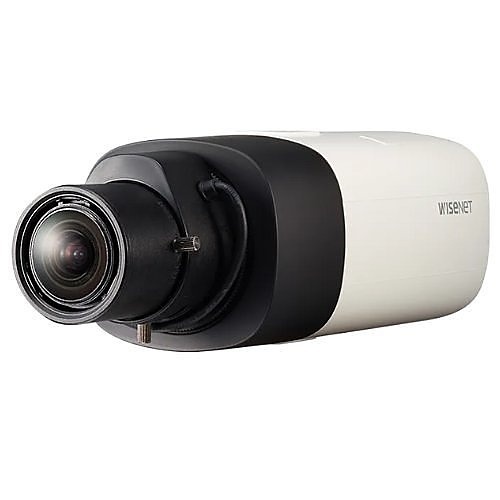

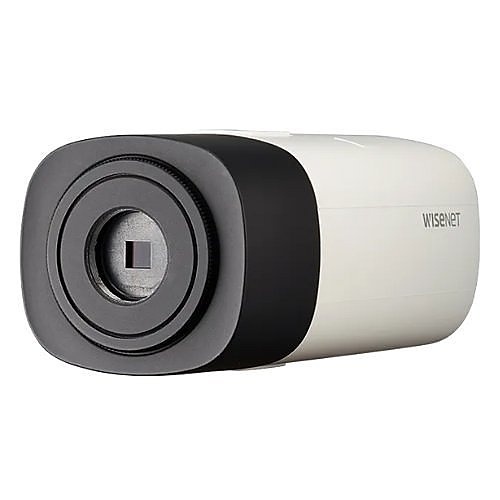

Name : Hanwha XNB-6000/KME Series 2MP WDR Box IP Camera, Lens Not Included, Black/Ivory, TAA Compliant , Hanwha Vision
Category : Box Cameras
UPC Code : 8801089189974
Country of Origin : Korea. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : SQ-XB6000KME
Brand Name : Hanwha Vision
Manufacturer : Hanwha Group
Manufacturer Part Number : XNB-6000/KME
Product Model : XNB-6000
Product Name : 2MP Network Camera
Product Series : X
Product Type : Network Camera
Weight (Approximate) (g) : 420
Technical Information
Connectivity Technology : wired
Effective Camera Resolution : 2MP
HD Recording : Yes
Lens Mount Type : C/CS-mount
Lens Type : Manual
Maximum Frame Rate : 60 fps
Camera
Wide Dynamic Range : Yes
Display & Graphics
Color Supported : Color
Effective Camera Resolution (Pixel) : 2000000
Maximum Video Resolution : 1920 x 1080
Environmental Conditions
Maximum Operating Temperature : 131°F (55°C)
Maximum Operating Temperature (°F) : 131
Minimum Operating Temperature : 14°F (-10°C)
Minimum Operating Temperature (°F) : 14
Operating Humidity : 90%
Exposure
Longest Shutter Speed : 2 Second
Shortest Shutter Speed : 1/12000 Second
Interfaces/Ports
Network (RJ-45) : yes
Physical Characteristics
Color : Black, Ivory
Depth : 5.8"
Depth (mm) : 147.8
Form Factor : Dome
Height : 2.6"
Height (mm) : 66.6
Weight (Approximate) : 14.82 oz
Width : 2.9"
Width (mm) : 73.1
Power Description
Input Voltage : 12V DC, 24V AC
Input Voltage (V AC) : 24
Input Voltage (V DC) : 12
Product Information
Mount Type : C Mount, CS Mount
Storage
Recording Formats : Full HD
Storage Type : Memory Card
Video
Analog Video Signal Format : CVBS
Maximum Frame Rate (fps) : 60
Miscellaneous
Features : Audio Detection, Back Light Compensation (BLC), Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Gain Control, Motion detection, Privacy Masking, White Balance, Wide Dynamic Range
TAA Compliant : yes
