Product Overview
Wisenet X powered by Wisenet 5 network box camera, 5MP @30fps WDR off/on, Simple focus, H.265/H.264/MJPEG, WiseStream II compression technology, 120dB WDR, USB port for easy installation, Advanced video analytics and sound classification, True D/N, Dual SD card, Hallway view, HLC, Defog detection with simple focus, DIS using a Gyro sensor, 12VDC/24VAC/PoE
General Information

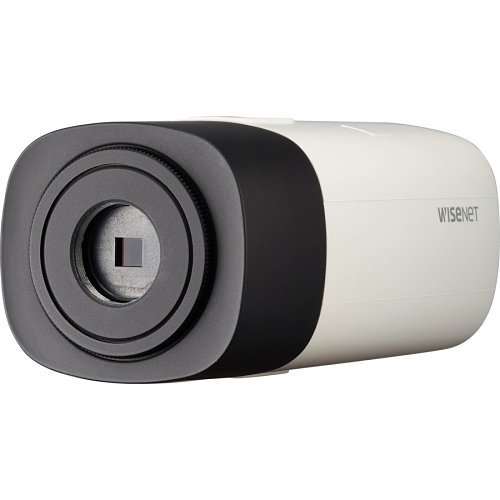

Name : Hanwha XNB-8000 Series 5MP IP Box Camera, Black/Ivory , Hanwha Vision
Category : Box Cameras
UPC Code : 8801089100818
Country of Origin : +1. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : SQ-XNB8000
Brand Name : Hanwha Vision
Connectivity Technology : Wired
Manufacturer : Hanwha Group
Manufacturer Part Number : XNB-8000
NDAA Compliant : yes
Product Model : XNB-8000
Product Name : 5MP Network Camera
Product Series : X
Product Type : Network Camera
Weight (Approximate) (g) : 421.841
Technical Information
Effective Camera Resolution : 5MP
HD Recording : Yes
Maximum Frame Rate : 30 fps
Camera
Wide Dynamic Range : Yes
Display & Graphics
Color Supported : Color, Monochrome
Effective Camera Resolution (Pixel) : 5000000
Maximum Video Resolution : 2560 x 1920
Environmental Conditions
Maximum Operating Temperature : 131°F (55°C)
Maximum Operating Temperature (°F) : 131
Minimum Operating Temperature : 14°F (-10°C)
Minimum Operating Temperature (°F) : 14
Operating Humidity : 90%
Exposure
Longest Shutter Speed : 2 Second
Shortest Shutter Speed : 1/12000 Second
Interfaces/Ports
Network (RJ-45) : yes
Physical Characteristics
Color : Black, White
Depth : 5.8"
Depth (mm) : 147.828
Form Factor : Box
Height : 2.6"
Height (mm) : 66.548
Weight (Approximate) : 14.88 oz
Width : 2.9"
Width (mm) : 73.152
Power Description
Input Voltage : 12V DC, 24V AC
Input Voltage (V AC) : 24
Input Voltage (V DC) : 12
Product Information
Mount Type : Bracket Mount
Storage
Recording Formats : HD
Storage Type : Memory Card
Video
Maximum Frame Rate (fps) : 30
Warranty
Limited Warranty : 3 year
Miscellaneous
Features : Alarm Triggering, Back Light Compensation (BLC), Defog, Digital Image Stabilization, Digital Noise Reduction, Gain Control, Motion detection, Privacy Masking, SD Card Local Storage, White Balance
Indoor/Outdoor : Indoor, outdoor
