AXIS Q1700-LE Q17 Series 2MP License Plate Camera, Built-In Optimized IR at Speeds, 8x Optical Zoom, Grey

Brand: AXIS Communications
ADI #:Z4-01782001 Model #: 01782-001  Name: AXIS Q1700-LE Q17 Series 2MP License Plate Camera, Built-In Optimized IR at Speeds, 8x Optical Zoom, Grey
  • Designed for third-party software
  • Sharp license plate images day and night
  • Handle speeds of up to 130 km/h (81 mph)

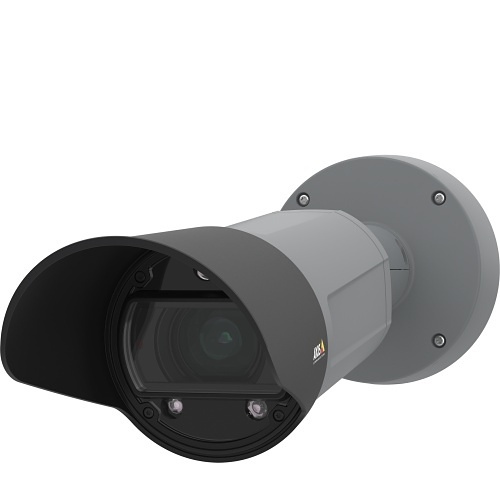

AXIS Q1700-LE 2 Megapixel Network Camera

Product Overview

AXIS Q1700-LE License Plate Camera is the first dedicated license plate camera from Axis enabling you to capture sharp images 24/7. And thanks to its open platform, you get flexible integration with third-party analytics. This makes AXIS Q1700-LE ideal for road and urban security, vehicle loitering such as suspicious movement, tracking cars or goods and law enforcement purposes for instance gathering forensic evidence or searching for stolen vehicles.

General Information

Name : AXIS Q1700-LE Q17 Series 2MP License Plate Camera, Built-In Optimized IR at Speeds, 8x Optical Zoom, Grey , AXIS Communications
Category : Bullet Cameras
UPC Code : 7331021067660
Country of Origin : Poland. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : Z4-01782001
Brand Name : AXIS
Connectivity Technology : Wired
Manufacturer : Axis Communications
Manufacturer Part Number : 01782-001
NDAA Compliant : Yes
Product Model : Q1700-LE
Product Name : Q1700-LE License Plate Camera
Product Series : Q17
Product Type : Network Camera
Weight (Approximate) (g) : 2400

Technical Information

Effective Camera Resolution : 2MP
Field of View : Horizontal field of view: 16°-2.3° - Vertical field of view: 9.6°-1.3°
HD Recording : Yes
Lens Type : Varifocal
Maximum Aperture : f/2.9
Maximum Focal Length (mm) : 137
Maximum Frame Rate : 60 fps
Minimum Focal Length : 18 mm
Night Vision : Yes
Night Vision Type : Infrared
Optical Zoom : 8.3x
Video Formats : H.264, H.264 (MP), H.264 (MPEG-4 Part 10/AVC), H.264 BP, H.264 HP, Motion JPEG

Camera

Image Sensor Type : CMOS
Night Vision Distance : 164.04 ft
Night Vision Distance (mm) : 50000
Wide Dynamic Range : Yes

Display & Graphics

Color Supported : Color
Effective Camera Resolution (Pixel) : 2000000
Maximum Video Resolution : 1920 x 1080
Minimum Illumination (lux) : 0

Environmental Conditions

Maximum Operating Temperature : 140°F (60°C)
Maximum Operating Temperature (°F) : 140
Minimum Operating Temperature : -40°F (-40°C)
Minimum Operating Temperature (°F) : -40
Operating Humidity : 100%

Exposure

Longest Shutter Speed : 1 Second
Minimum Illumination : 0 lux
Shortest Shutter Speed : 1/66500 Second

Interfaces/Ports

Network (RJ-45) : Yes

Lens

Lens Included : Yes
Maximum Focal Length : 137 mm
Minimum Aperture : f/4

Network & Communication

Remote Management : Yes

Physical Characteristics

Color : Gray
Diameter (mm) : 147
Durability : Impact Resistant, Vandal Resistant, Weather Resistant
Form Factor : Bullet
Weight (Approximate) : 5.29 lb

Power Description

Input Voltage : 24 V AC, 28 V DC
Input Voltage (V AC) : 24
Input Voltage (V DC) : 28

Product Information

Diameter : 5.8"
Length : 17.3"
Length (mm) : 439
Mount Type : Backbox Mount, Bracket Mount, Conduit Mount, Corner Mount, Pole Mount

Projection Lens

Minimum Focal Length (mm) : 18

Storage

Recording Formats : Full HD
Storage Type : Memory Card

Video

Maximum Frame Rate (fps) : 60

Warranty

Limited Warranty : 5 Year

Miscellaneous

Features : Active Tampering Alarm, Audio Detection, Built-in Infrared Illuminator, Built-in IR LED, Day/Night, Defog, Electronic Image Stabilization, HTTPS Encryption, Motion Detection, Password Protection, Privacy Masking, Removable IR Cut-off Filter, SD Card Local Storage, White Balance, Wide Dynamic Range
Impact Protection Rating : IK10
Indoor/Outdoor : Outdoor
Ingress Protection Rating : IP66
Package Contents : <ul> <li>Q1700-LE License Plate Camera</li> <li>Installation Guide</li> <li>Windows Decoder 1-user License</li> <li>Connector Kit</li> <li>Resistorx L-Key</li> <li>RJ45 Patch Cable</li> </ul>
TAA Compliant : Yes
