Product Overview

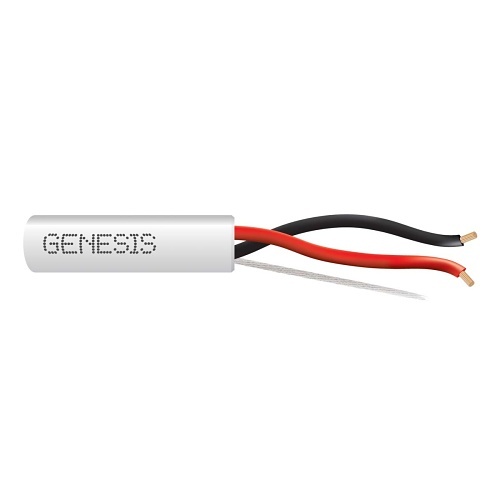

This Genesis® cable features 2 stranded 18 AWG copper conductors and a plenum rating. Choose this cable for a dependable connection for security, controls, audio, and other low-voltage applications.
General Information
Name : Genesis 31141112 18/2 Stranded Plenum Cable, Unshielded, CL3P, FPLP, CMP, FT6, 1000' (304.8m), REELEX Pull Box, Natural White , Genesis
Category : Stranded Plenum Unshielded Cables
UPC Code : 619172013765
Country of Origin : United States. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : WG-31141112
Brand Name : Genesis
Manufacturer : Genesis Cable
Manufacturer Part Number : 31141112
Product Model : 31141112
Product Name : 31141112 Control Cable
Product Type : Control Cable
Weight (Approximate) (g) : 7166.759
Technical Information
American Wire Gauge : 18AWG
Cable Type : Stranded Plenum Unshielded Cables
Connector on First End : Bare Wire
Connector on Second End : Bare Wire
Core/Cladding Diameter : 18/2
Device Supported : Burglar Alarm, Intercom, Phone, Speaker
Jacket Type : FT6, Plenum
Material : Polyvinyl Chloride (PVC) - Jacket
Number of Conductors : 2
Number of Pairs : 1
Shielding : No
Solid or Stranded : Stranded
Lock
Cable Length (mm) : 304800
Physical Characteristics
Cable Length : 1000'
Color : White
Package Type : Pull Box
Weight (Approximate) : 15.80 lb
Miscellaneous
Environmental Certification : RoHS
Features : Stranded
