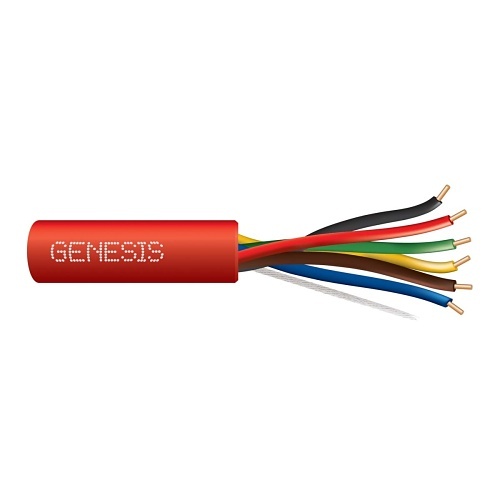

Genesis 43085504 18/6 Solid Riser Fire Alarm Cable, Unshielded, FPLR, CL3R, FT4, Sunlight Resistant, 500' (152.4m), REELEX Pull Box, Red

Brand: Genesis
ADI #:WG-43085504 Model #: 43085504  Name: Genesis 43085504 18/6 Solid Riser Fire Alarm Cable, Unshielded, FPLR, CL3R, FT4, Sunlight Resistant, 500' (152.4m), REELEX Pull Box, Red
  • Solid bare copper conductors
  • Rated for riser and general purpose indoor installation
  • Rated for sunlight (UV) resistance
Genesis 18 AWG 6 Solid Conductors, Riser FPLR
Length

Product Overview

This Genesis® cable features 6 solid 18 AWG copper conductors and a riser rating. Choose this cable for a dependable fire alarm system wiring solution.

General Information

Name : Genesis 43085504 18/6 Solid Riser Fire Alarm Cable, Unshielded, FPLR, CL3R, FT4, Sunlight Resistant, 500' (152.4m), REELEX Pull Box, Red , Genesis
Category : FPLR Unshielded Cables
UPC Code : 194160006894
Country of Origin : United States. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : WG-43085504
Brand Name : Genesis
Manufacturer : Genesis Cable
Manufacturer Part Number : 43085504
Packaged Quantity : 1
Product Model : 43085504
Product Name : 18 AWG 6 Solid Conductors, Riser FPLR
Product Type : Control Cable
Weight (Approximate) (g) : 5805.982

Technical Information

American Wire Gauge : 18 AWG
Cable Listing : CL3R, FPLR, FT4, Sunlight Resistant
Cable Type : FPLR Unshielded Cables
Connector on First End : Bare Wire
Connector on Second End : Bare Wire
Device Supported : Fire Alarm
Jacket Type : CL3R, CSA FT4, FPLR, FT4, Riser
Number of Conductors : 6
Shielding : No
Solid or Stranded : Solid

Physical Characteristics

Cable Length : 500 ft
Cable Length (mm) : 152400
Color : Red
Material : Polypropylene - Insulation, Polyvinyl Chloride (PVC) - Jacket
Package Type : Pull Box
Weight (Approximate) : 12.80 lb

Miscellaneous

Country of Origin : United States
Environmental Certification : RoHS
Environmentally Friendly : Yes
Features : Stranded, Sunlight Resistant
