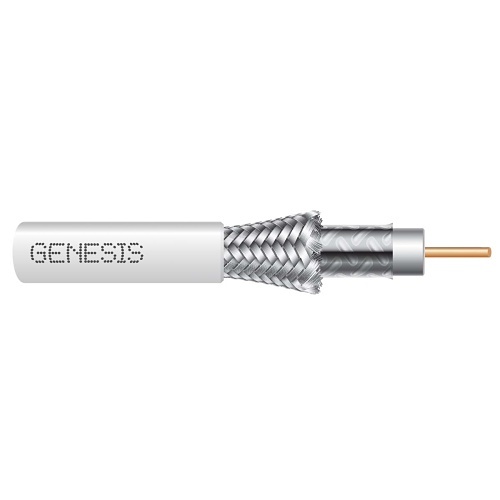

Name: Genesis 53041101 RG6 BC Dual-Shield Riser CATV Cable, 1000' (304.8m), Pull Box, White
Brand: Genesis
SKU: WG-53041101
Price: $0.00

Genesis 53041101 RG6 BC Dual-Shield Riser CATV Cable, 1000' (304.8m), Pull Box, White

Brand: Genesis

ADI #:WG-53041101 Model #: 53041101 Name: Genesis 53041101 RG6 BC Dual-Shield Riser CATV Cable, 1000' (304.8m), Pull Box, White

Solid bare copper conductor
Bare copper braid shield
Rated for riser and general purpose indoor installation

Product Overview

This Genesis® cable features a solid 18 AWG bare copper center conductor, a dual shield, and a general purpose rating. Choose this cable for reliable CATV wiring.

General Information
Name : Genesis 53041101 RG6 BC Dual-Shield Riser CATV Cable, 1000' (304.8m), Pull Box, White , Genesis
Category : Coaxial Cables
UPC Code : 781410923171
Country of Origin : China. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : WG-53041101

Brand Name : Genesis

Manufacturer : Genesis Cable

Manufacturer Part Number : 53041101

Product Line : Genesis

Product Name : Genesis Coaxial Video Cable

Product Type : Video Cable

Weight (Approximate) (g) : 12246.994

Technical Information

American Wire Gauge : 18AWG

Cable Listing : CATV, CL2, CM, Sunlight Resistant

Cable Type : Coaxial

Connector on First End : Bare Wire

Connector on Second End : Bare Wire

Device Supported : Video Device

Impedance : 75 ohms

Jacket Type : Riser

Material : PVC

Number of Conductors : 1

Shielding : Dual

Solid or Stranded : Solid

Lock

Cable Length (mm) : 304800

Physical Characteristics

Cable Length : 1000'

Color : White

Insulation Material : Foamed PE

Package Type : Pull Box

Weight (Approximate) : 27 lb
