Product Overview

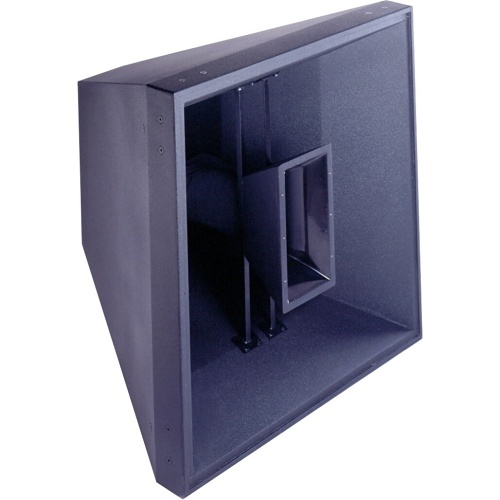

The PD764 Precision Directivity loudspeaker provides high-impact sound reinforcement at throw distances that are beyond the reach of single-driver designs. A single module produces greater than 104 dB SPL (continuous) at distances of 50 m (165 ft). The PD764 may be used in clusters with other PD family modules or singly as part of a distributed system. PD100 series low-frequency elements may be added to the array to extend bandwidth and pattern control to the lowest octaves.
General Information
Name : JBL Professional PD764 Speaker , JBL Professional
Category : Pro Speakers
UPC Code :
Country of Origin : Mexico. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : JF-PD764
Brand Name : JBL Professional
Manufacturer : Harman International Industries, Inc
Manufacturer Part Number : PD764
Product Model : PD764
Product Name : Very High Output Mid-High Loudspeaker System
Product Type : Speaker
Weight (Approximate) (g) : 97522.36
Technical Information
Impedance : 16 ohms
Impedance (Ohm) : 16
Maximum Frequency Response (Hz) : 15000
Midrange Driver Material : Neodymium
Midrange Driver Size : 3"
Midrange Driver Size (mm) : 76.2
Minimum Frequency Response (Hz) : 200
PMPO Output Power (W) : 2800
Audio
Maximum Frequency Response : 15 kHz
Minimum Frequency Response : 200 Hz
PMPO Output Power : 2800 W
RMS Output Power : 700W
RMS Output Power (W) : 700
Physical Characteristics
Color : Black
Depth : 34.75"
Depth (mm) : 882.65
Height : 39"
Height (mm) : 990.6
Product Color : Black
Product Material : Foam, Plywood, Steel
Weight (Approximate) : 215 lb
Width : 39"
Width (mm) : 990.6
Warranty
Limited Warranty : 5 Year
