Genesis 50035501 RG6 CCS Dual-Shield General Purpose CATV Cable, CL2, CM, Sunlight Resistant, 500' (152.4m) Pull Box, White

Brand: Genesis
ADI #:WG-50035501 Model #: 50035501  Name: Genesis 50035501 RG6 CCS Dual-Shield General Purpose CATV Cable, CL2, CM, Sunlight Resistant, 500' (152.4m) Pull Box, White
  • Solid copper clad steel (CCS) conductor
  • Dual Shield
  • Rated for general purpose indoor installation
Genesis 50035501 Coaxial Antenna Cable
Length

Product Overview

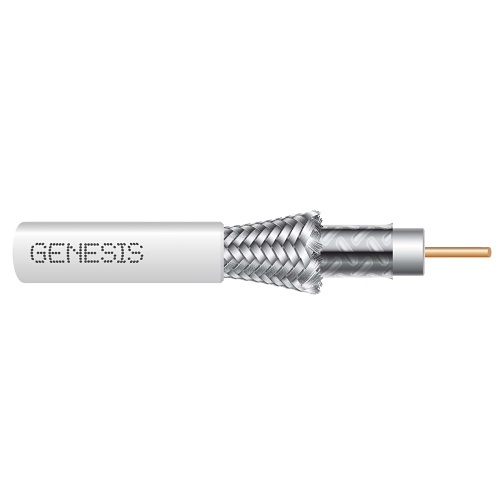

This Genesis® cable features a solid 18 AWG copper-clad steel center conductor, a dual shield, and a general purpose rating. Choose this cable for reliable CATV wiring.

Main Features
  • Solid copper clad steel (CCS) conductor
  • Dual Shield
  • Rated for general purpose indoor installation
  • Rated for sunlight (UV) resistance
  • 500 ft. (152.4 m) pull box
  • White jacket

General Information

Name : Genesis 50035501 RG6 CCS Dual-Shield General Purpose CATV Cable, CL2, CM, Sunlight Resistant, 500' (152.4m) Pull Box, White , Genesis
Category : Coaxial Cables
UPC Code : 619172018081
Country of Origin : China. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : WG-50035501
Brand Name : Genesis
Manufacturer : Genesis Cable
Manufacturer Part Number : 50035501
Packaged Quantity : 1
Packing : Box
Product Model : 50035501
Product Name : 50035501 Coaxial Antenna Cable
Product Type : Antenna Cable
Weight (Approximate) (g) : 7212.119

Technical Information

American Wire Gauge : 18 AWG
Cable Listing : CATV, CL2, CM, Sunlight Resistant
Cable Type : Coaxial Cables
Connector on First End : Bare Wire
Connector on Second End : Bare Wire
Impedance : 75 Ohm
Jacket Type : CL2, CM
Number of Conductors : 1
Shielding : Yes
Solid or Stranded : Solid

Physical Characteristics

Cable Length : 500 ft
Cable Length (mm) : 152400
Color : White
Jacket Material : Polyvinyl Chloride (PVC)
Material : PVC - Polyvinyl Chloride
Material Details : Copper Clad Steel Conductor
Package Type : Pull Box
Product Color : White
Product Material : Copper Clad Steel
Weight (Approximate) : 15.90 lb

Miscellaneous

Certifications & Standards : <ul><li>CATV</li><li>CL2</li></ul>
Country of Origin : China
Environmental Certification : RoHS
Environmentally Friendly : Yes
Features : Stranded
