Belden 1862A D261000 16AWG 2-Conductor Speaker Cable, Unjacketed, Plenum, 1000', Black
1862A D261000
|7B-1862AD261
Shop All Belden
Belden 1862A D261000 16AWG 2-Conductor Speaker Cable, Unjacketed, Plenum, 1000', Black
1862A D261000 | 7B-1862AD261
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

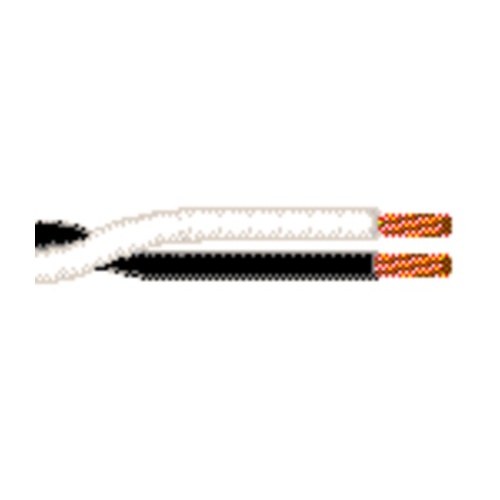

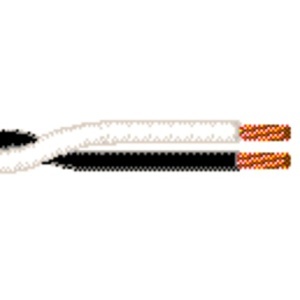

Speaker Cable, 2 Conductor 16 AWG stranded (19x29) high conductivity bare copper conductors with Flamarrest insulation, cabled in an open twisted construction, Plenum-CL3P.
Main Features
- 16 AWG stranded (19x29) high conductivity bare copper conductors
- Flamarrest insulation for fire resistance
- Open twisted construction
- Plenum-rated CL3P cable
- 2 conductor speaker cable
General Information
Name: Belden 1862A D261000 16AWG 2-Conductor Speaker Cable, Unjacketed, Plenum, 1000', Black
Category: Belden, Wire & Cable, Speaker Cables, Plenum Audio Cables
UPC Code: 612825125167
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-1862AD261 Brand Name Belden Country of Origin MX Manufacturer Part Number 1862A D261000 Package Type Reel/Spool Packaged Quantity 305 Product Type Audio Cable
American Wire Gauge 16AWG Cable Rating Plenum Cable Style Twisted Pair Conductor Count 2 Conductor Material Bare Copper CPR Euroclass Rating EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) Number of Conductors 2 Shielding No Solid or Stranded Stranded
Certifications & Standards CL3P,China RoHS II (GB/T 26572-2011),Yes,China RoHS II (GB/T 26572-2011),EU Directive 2003/11/EC (BFR),CL3P,China RoHS II (GB/T 26572-2011) UL Listed Yes
Operating Temperature (T-T) -20-75°C
Cable Length 1000' Color Black Height 1000.0' Insulation Material FEP (Fluorinated Ethylene Propylene) Jacket Material LS PVC (Low Smoke PVC)
Voltage Rating 150V
Length 1000'
Limited Warranty 10-Year
Features Speaker Cable,N/A to N/A Indoor/Outdoor Indoor
