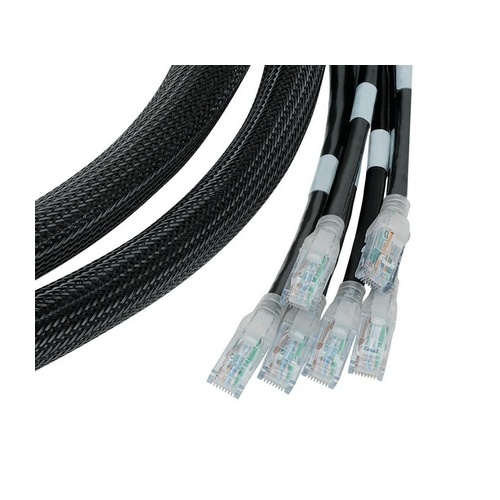

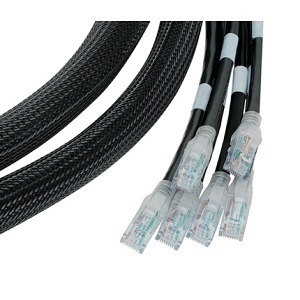

Belden C601106012A08 8-Position Harness B3600 Cable, CMR, 12', Blue
C601106012A08
|7B-6116128
Shop All Belden
Belden C601106012A08 8-Position Harness B3600 Cable, CMR, 12', Blue
C601106012A08 | 7B-6116128
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Copper Trunk Assemblies. Ideal for data centers, enterprise networks and other applications where installation speed is important, our Copper Trunk Cable Assemblies are factory terminated and tested to reduce installation time by up to 90%. No termination required! Assemblies are available in various lengths with connectors that meet the needs of your application. Our popular braided leaf design keeps all cables together inside bundles.
General Information
Name: Belden C601106012A08 8-Position Harness B3600 Cable, CMR, 12', Blue
Category: Belden, Wire & Cable, Network Patch Cords, Category 6 Patch Cords
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-6116128 Application/Usage 1000BASE-T, IBDN System 3600, ISO Class E, TIA Category 6 Brand Name Belden Country of Origin MX Manufacturer Part Number C601106012A08 Package Type Box Packaged Quantity 1 Product Type Network Cable
American Wire Gauge 23AWG Cable Rating Riser Cable Style Unshielded Cable Type Category 6 Conductor Material Bare Copper, Tinned Copper Impedance 75Ohm Number of Pairs 4 Shielding No Solid or Stranded Solid
Certifications & Standards FCC Part 68;Subpart F;IEC 60603-7,Category 6 - TIA 568-C.2, Class E - ISO/IEC 11801:2002 Ed.2 Amendment 2,Labeled at both ends: Part Number, Serial Number, Termination Scheme, Length, Individual cable identification. Customized Labeling fo CSA Listed Yes RoHS Compliant Restricted Substances Not Used
Maximum Storage Temperature 158°F Operating Temperature (T-T) -10°C to +60°C Storage Temperature (T-T) -40°C to +70°C
Network Technology 1000Base-T
Cable Length 12' Color Blue
Current Rating 1.5A Plug/Connector Type RJ-45
Features IBDN System 3600, TIA Category 6, ISO Class E, 1000BASE-T
