Belden 6200UE D151000 16/2 Stranded BC Security and Commercial Audio Cable, Plenum-CMP, Flamarrest Jacket with Ripcord, 1000' (304.8m) Reel, Blue
6200UE D151000
|7B-6200100BL
Shop All Belden
Belden 6200UE D151000 16/2 Stranded BC Security and Commercial Audio Cable, Plenum-CMP, Flamarrest Jacket with Ripcord, 1000' (304.8m) Reel, Blue
6200UE D151000 | 7B-6200100BL
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

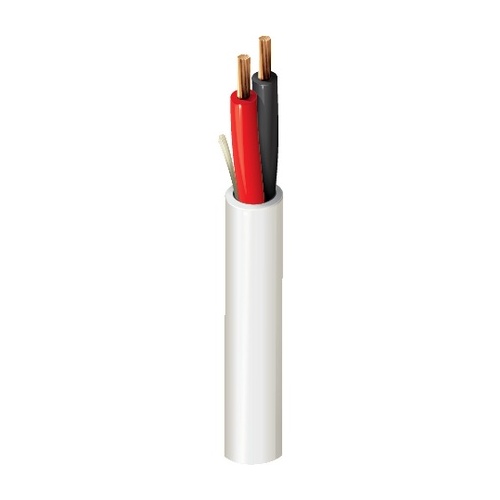

Security & Commercial Audio Cable, Plenum-CMP, 2-16 AWG stranded bare copper conductors with Flamarrest insulation, Flamarrest jacket with ripcord.
Main Features
- Easy Pulling & Stripping: Belden's quality jacketing saves installation time and money
- Easy Identification: Cable jackets feature footage room and zone markings
- Solid Construction: Features electrolytic tough pitch (ETP) virgin copper
- Suitable Applications: Intercom/PA Systems, Sound/Audio Systems
- 16AWG, 2 Conductors, 19x29 Stranding
- BC - Bare Copper
- PVC - Polyvinyl Chloride Insulation
- PVC - Polyvinyl Chloride Jacket
- Environmental Suitability: Indoor - Plenum, Indoor
- CMP
General Information
Name: Belden 6200UE D151000 16/2 Stranded BC Security and Commercial Audio Cable, Plenum-CMP, Flamarrest Jacket with Ripcord, 1000' (304.8m) Reel, Blue
Category: Belden, Wire & Cable, Speaker Cables, Security & Access Control Cables, Plenum Audio Cables, Multiconductor Cables
UPC Code: 612825351030
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-6200100BL Application/Usage Intercom/PA Systems, Sound/Audio Systems Brand Name Belden Country of Origin MX Manufacturer Part Number 6200UE D151000 Package Type Reel/Spool Packaged Quantity 305 Product Name Security & Sound, 2 Conductor 16 AWG, BC, CMP Product Type Audio/Control Cable
American Wire Gauge 16AWG Cable Rating Plenum Cable Style Coaxial Conductor Count 2 Conductor Material Bare Copper CPR Euroclass Rating Eca,EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) Fiber Category OS2 Fiber Optic Mode Single-mode Number of Conductors 2 Number of Pairs 1 Shielding No Solid or Stranded Stranded
Certifications & Standards CMP,Article 800,IEC 60332-1-2,CMP,FT6,Yes,CMP,EU Directive 2003/11/EC (BFR),IEC 60332-1-2,CMP,Article 800,IEC 60332-1-2,CMP,FT6 UL Listed Yes
Operating Temperature (T-T) 0-75°C
Cable Length 1000' Color Blue Height 1000.0' Insulation Material PVC (Polyvinyl Chloride) Jacket Material PVC (Polyvinyl Chloride),LS PVC (Low Smoke PVC) Material PVC
Voltage Rating 300V
Length 1000'
Limited Warranty 10-Year
Features Intercom/PA Systems, Sound/Audio Systems,N/A to N/A Indoor/Outdoor Indoor
