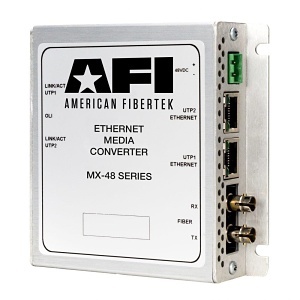

AFI MX-48-LX-SC MX-48 Series Ethernet Media Converter, 10/100/1000Base-T to 1000Base-LX, SC Connector
MX-48-LX-SC
|AZ-MX48LXSSC
AFI MX-48-LX-SC MX-48 Series Ethernet Media Converter, 10/100/1000Base-T to 1000Base-LX, SC Connector
MX-48-LX-SC | AZ-MX48LXSSC
Please sign in to view pricing, availability, and to add to cart.
Product Overview
The American Fibertek 48 Series transmits and receives (2) copper 10/100/1000 BaseT Ethernet signals at the RJ45 ports and (1) optical 1000 Base-X over 1 or 2 multimode fibers. The system is comprised of two units forming a point-to-point communications link.
The system is designed to be completely transparent with auto negotiation features which automatically configures the unit for the correct speed (10/100/1000 BaseT). Auto MDI/MDIX operation eliminates the potential need for crossover cables. Diagnostic indicators provide a quick visual indication of system status.
Main Features
- Supports 10/100/1000Base-T Ethernet on RJ45 ports
- Supports 1000Base-LX optical transmission via SC connector
- Transmits and receives over 1 or 2 multimode fibers
- Comprises two units forming a point-to-point link
- Features auto negotiation for speed configuration (10/100/1000BaseT)
- Includes Auto MDI/MDIX operation eliminating crossover cable need
- Diagnostic indicators for quick visual system status check
General Information
Specifications
ADI Part Number AZ-MX48LXSSC Brand Name American Fiberteck Country of Origin US Manufacturer American Fibertek, Inc Manufacturer Part Number MX48LXSC Product Model MX-48-LX-SC Product Name 10/100/1000Base-T to 1000Base-SX/LX Ethernet Media Converter / 3 Port Switch Product Series MX-48 Product Type Transceiver/Media Converter
Media Type Supported Optical Fiber, Twisted Pair
Network (RJ-45) Yes Number of Network (RJ-45) Ports 2 Number of SC Ports 2
Network Technology 10/100/1000Base-T
Ethernet Technology Gigabit Ethernet
Depth 4.00" Width 4.00"
