Product Overview
TX6 PLUS UTP Patch Cords are a component of TX650 and TX6000 Copper Cabling Systems.Interoperable and backward compatible, these end-to-end systems provide design flexibility to protect network investments well into the future. Category 6/Class E, UTP patch cords shall be constructed of 24 AWG unshielded twisted pair stranded copper cable with an enhanced performance modular plug at each end. Patch cord cable shall be offered in multiple colored UTP cable for design flexibility with a clear strain relief boot on each modular plug. All patch cords shall be compatible with both T568A and T568B wiring schemes.
Main Features
- 100% Performance tested for wire map, NEXT, and return loss
- U/UTP stranded 24 AWG copper cable
- Nominal diam of 0.235" allows for high-density installations and superior panel cable management
- Center de-embedded plug performs in center of ANSI/TIA-568.2-E component range, ensuring interoperability and superior performance
- Integral pair manager optimizes performance and consistency by reducing untwist at plug
- Tangle-free latch prevents snags and provides easy release, saving time on frequent moves, adds, and changes
- Slender strain relief boot provides easy access in high-density applications
- ANSI/TIA-568-C.2, ISO 11801 Class EA, IEEE 802.3af, 802.3at, 802.3bt type 3 and type 4, UL 1863
- RoHS Compliant
- TAA Compliant
General Information

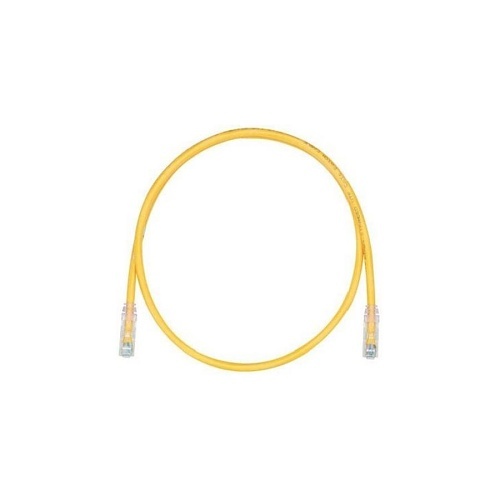

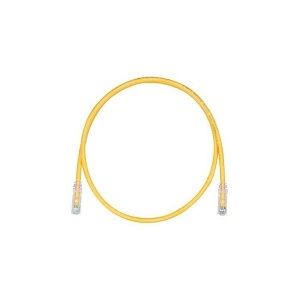

Name: Panduit UTPSP21YLY Category 6 Patch Cable, Yellow
Category: Panduit, Wire & Cable, Network Patch Cords, Category 6 Patch Cords
UPC Code: 74983666638
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-TPSP21YLY Application/Usage 1.2 Gb/s ATM, 1000BASE-T (Gigabit Ethernet), 100BASE-T (Fast Ethernet), 10GBASE-T (10Gigabit Ethernet over limited distances as specified in the industry 10GBASE-T standards), 155 Mb/s ATM, 622 Mb/s ATM, Digital video and broadband/baseband analog video, Ethernet 10BASE-T, Token ring 4/16, Voice over Internet Protocol (VoIP) Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number UTPSP21YLY Product Line Pan-Net Product Name Cat.6 UTP Patch Network Cable Product Series TX6 PLUS Product Type Network Cable
American Wire Gauge 24AWG Cable Type Patch Cable Connector on First End RJ-45 Connector on Second End RJ-45 Contact Plating Gold Device Supported Network Device Jacket Type CM Shielding No Solid or Stranded Stranded
TAA Compliant Yes
UPC 074983666638
Connector Type RJ45
Cable Length 21' Color Yellow Material Copper
Limited Warranty 1-Year
Compatibility T568A Wiring Schemes, T568B Wiring Schemes Environmental Certification FCC, RoHS, UL Environmentally Friendly Yes Features Booted, Minimized Near-End Crosstalk (NEXT), PoE Ready, Strain Relief, Stranded, Tangle-free
