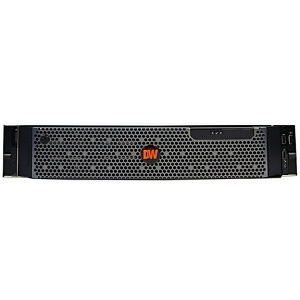

Digital Watchdog DW-BJRR2U180T Blackjack Rack 2U 12-Bay Server, 16GB RAM, Single Processor, Windows 2019 OS, 180TB
DW-BJRR2U180T
|6K-RR2U180T
Hard Drive Capacity: 180TB
Operating System Compatibility: Windows
RAID Levels: RAID 5
Shop all Digital Watchdog
Digital Watchdog DW-BJRR2U180T Blackjack Rack 2U 12-Bay Server, 16GB RAM, Single Processor, Windows 2019 OS, 180TB
DW-BJRR2U180T | 6K-RR2U180T
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
This single-processor Blackjack Rack server is the ultimate solution for recording multiple IP cameras of any resolution at up to 600Mbps throughput. The UL listed server includes Windows 10, Windows Server 2019 or Linux Ubuntu OS on a separate 240GB NVMe SSD. The 2U rack-mountable hardware features an Intel Xeon processor, 16GB memory, dual network cards, dual power supply, mini DisplayPort outputs and removable hot-swappable drives. The Blackjack Rack server comes preloaded with DW Spectrum IPVMS and eight recording licenses, up to 240TB raw internal storage with RAID5 and is ONVIF conformant.
Main Features
- Supports all ONVIF conformant IP cameras
- Storage options 80-240TB raw internal storage
- Record and manage single- and multi-sensor IP cameras of any resolution up to 600Mbps throughput
- Hot Swappable HDDs
- OS RAID 1, Data RAID5, RAID6 Options
- Redundant power supply
- Dedicated GPU for client application for easy configuration
- Intel Xeon processor
- 2x 1G, 4 x 1G Ethernet ports
- Windows 10, Ubuntu Linux, Windows Server OS on
General Information
Name: Digital Watchdog DW-BJRR2U180T Blackjack Rack 2U 12-Bay Server, 16GB RAM, Single Processor, Windows 2019 OS, 180TB
Category: Digital Watchdog, Video Surveillance, Recording Devices & Servers, Network Video Recorders (NVRs), Video Surveillance Servers, ADI Pro Rewards
UPC Code: 840407900196
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number 6K-RR2U180T Brand Name Digital Watchdog Manufacturer Part Number DW-BJRR2U180T Product Line Blackjack Product Model DW-BJRR2U180T Product Series Rack U
Storage Capacity 180TB
TAA Compliant Yes
RAID Levels RAID 5
Operating Humidity 20-90% RH Operating Temperature (T-T) 41-104°F
Number of USB Ports 1
Ethernet Technology 1 Gigabit Ethernet
Dimensions 3.41†x 18.97†x 28.4†Weight 66 lb
Hard Drive Capacity 180TB
Limited Warranty 5-Year
Certifications CE, FCC, NDAA, ONVIF, TAA, UL Listed Country of Origin US Operating System Compatibility Windows Package Contents Keyboard, Mouse
