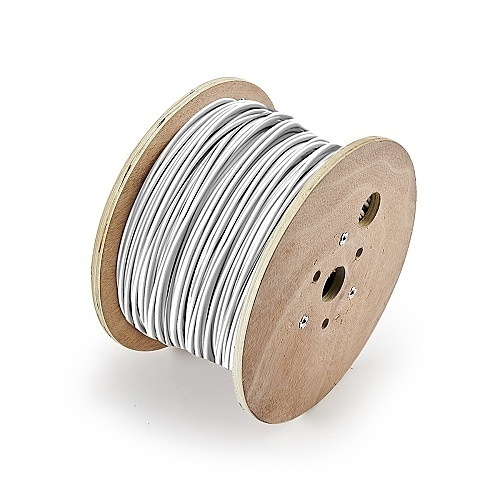

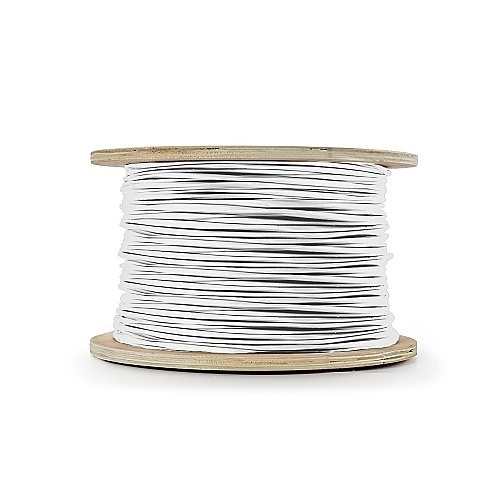

Genesis 32165012 18/6 Stranded Shielded Cable, Plenum, CMP, FT6, 500' (152.4 m) Reel, Natural
32165012|WG-32165012
Color: Natural
Cable Length: 500'
Package Type: Reel
Number of Conductors: 6
American Wire Gauge: 18AWG
Genesis
Genesis 32165012 18/6 Stranded Shielded Cable, Plenum, CMP, FT6, 500' (152.4 m) Reel, Natural
32165012|WG-32165012
Color: Natural
Cable Length: 500'
Package Type: Reel
Number of Conductors: 6
American Wire Gauge: 18AWG
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Foil shield over all conductors
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Foil shield over all conductors
.jpg)
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Foil shield over all conductors
Genesis
Genesis 32165012 18/6 Stranded Shielded Cable, Plenum, CMP, FT6, 500' (152.4 m) Reel, Natural
32165012 | WG-32165012
Please sign in to view pricing and availability and to add to cart.
Recommended
947-75TWH | 947-75TWH
947-75TWH | 947-75TWH
Sign In for Dealer Pricing
8080-T-BL | GI-8080TBL
8080-T-BL | GI-8080TBL
Sign In for Dealer Pricing
T.REX-XL | KW-TREXXL
T.REX-XL | KW-TREXXL
Sign In for Dealer Pricing
1201804002 | PW-PS12180NB
1201804002 | PW-PS12180NB
Sign In for Dealer Pricing
31031110 | WG-31031110
31031110 | WG-31031110
Sign In for Dealer Pricing
Accessories
Cable Ties & Straps
ADI # 0E-WTS850N
MODEL # 0E-WTS850N
0E-WTS850N|0E-WTS850N
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview
Genesis Shielded Multiconductor Cables offer a versatile solution for various applications. These shielded cables minimize electrical noise and interference to protect sensitive signals.
Main Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Foil shield over all conductors
- Plenum PVC jacket
- Durable rip cord for efficient jacket stripping and removal
- Countdown Length Markings for easy tracking of usage and remaining cable
- Rated for 300 Volts
- Rated for -20 °C to 75 °C
- REACH/RoHS Compliant
General Information
Name: Genesis 32165012 18/6 Stranded Shielded Cable, Plenum, CMP, FT6, 500' (152.4 m) Reel, Natural
Category: Genesis, Wire & Cable, Security & Access Control Cables, Plenum Shielded Cables
UPC Code: 619172016742
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number WG-32165012 Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 32165012 Packaged Quantity 1 Product Model 32165012 Product Name 32165012 Control Cable Product Type Access & Security Cable Weight 22.30 lb
-
American Wire Gauge 18AWG Cable Rating Plenum Cable Type Multi-conductor, Multi-pair Conductor Count 1 Conductor Material Bare Copper Core/Cladding Diameter 18/6 Device Supported Burglar Alarm, Intercom, Phone, Speaker Jacket Material LS PVC Jacket Type Riser Number of Conductors 6 Number of Pairs 1 Shielding Yes Solid or Stranded Stranded
-
TAA Compliant Yes
-
Cable Length 500' Color Natural Insulation Material LS-PVC Material Bare Copper Package Type Reel
-
Limited Warranty 3-Year
-
Country of Origin US Environmental Certification RoHS Environmentally Friendly Yes Features Stranded Indoor/Outdoor Indoor
