Tripp Lite U026-10M USB 2.0 Active Extension Repeater Cable (A M/F), 10m (8')
U026-10M
|TC-U02610M
Shop all Eaton Tripp Lite
Tripp Lite U026-10M USB 2.0 Active Extension Repeater Cable (A M/F), 10m (8')
U026-10M | TC-U02610M
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

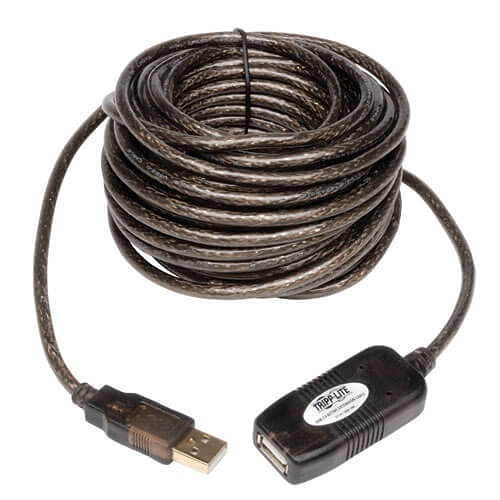

This USB 2.0 active extension cable is a bus-powered extension cable that can be used to increase the length of a device cable without the worry of signal loss and potential performance problems. USB limits a cable's length to 16 feet (4.9 meters). Any length above 16 feet requires the use of an active cable such as this one. This cable has a signal booster built in. The overall cable length can be extended up to 131 feet (40 meters) by daisy-chaining four of these active cables. The cable must be plugged directly into a USB port (either on the PC or a hub). Use a standard six' (1.8m), 10' (3.1m) or 15' (4.6m) USB A/B cable to reach the desired distance. The U026-10M provides up to 150mA of power to the connected device. If your device requires more than 150mA of power, it will either need to have its own power supply or to be plugged into a powered USB 2.0 hub (such as U222-004-R) that is connected to the U026-10M.
Main Features
- 10m USB 2.0 Active Extension Cable
- Supports 480Mbps transfer rate
- Backward compatible with USB 1.1
- Daisy chain up to 131'
- Bus Powered, no external Power needed
- Plug-and-Play with major OS
- Provides up to 150mA Power
- Requires Powered hub for >150mA devices
General Information
Name: Tripp Lite U026-10M USB 2.0 Active Extension Repeater Cable (A M/F), 10m (8')
Category: Pro AV, Commercial Connector Cables, Pro USB Cables, ADI Pro Rewards
UPC Code: 037332173263
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number TC-U02610M Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number U026-10M Packaged Quantity 1 Product Model U026-10M Product Name 10-meter ( 3.28 ft. ) USB2.0 A/A Hi-Speed Active Extension / Repeater Cable Product Type Signal Amplifier USB Version 2
Connector on First End USB Type-A Male Connector on Second End DB9 Male
Network (RJ-45) Yes
Cable Length 8'
Length 32.8'
Limited Warranty 3-Year
Country of Origin CN Environmental Certification RoHS Environmentally Friendly Yes Package Contents - 10-Meter ( 33 ft. ) USB2.0 A/A Hi-Speed Active Extension / Repeater Cable
