Product Overview

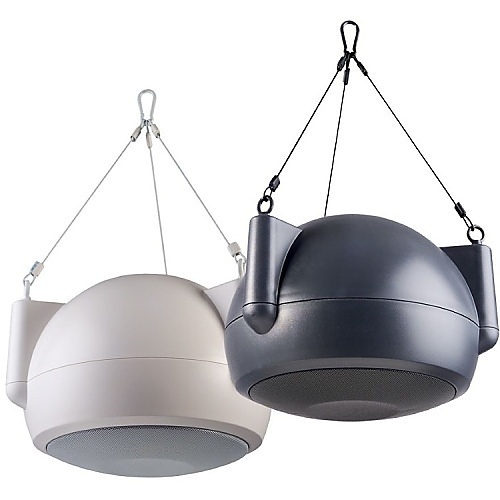

The Bogen Orbit Pendant speaker (OPS1) is the ideal choice for high ceiling and open space environments. The OPS1 features MLS and MDT technologies (see below), which improve sound quality and increase operating reliability. The low-distortion speaker design, featuring a spider-less driver and one-piece metal-alloy cone structure, delivers superb articulation and the highest intelligibility for both music and speech. The speakers consists of one 6-1/2" (nominal) low frequency transducer, and one 20mm (3/4") (nominal) high frequency transducer with a filter network for dividing frequencies between the transducers.
Main Features
- Wide dispersion coaxial driver for broad, even 140° coverage
- Stable, high definition metal-alloy cone
- MDT cone design delivers detailed sound
- MLS eliminates conventional centering “spider” for more accurate voice coil centering
- High-efficiency drivers deliver superior performance
- Extremely good off-axis response
- Computer-matched venting system for full bass output
- High power handling capability for foreground sound
- Selectable power taps via front-mounted control
- 16-ohm input for non-transformer multi-speaker systems
General Information
Name: Bogen OPS1B 6" Orbit Pendant Speaker 100W, 70V, Dark Gray
Category: Bogen, Pro AV, Commercial Audio, Pro Speakers
UPC Code: 765368100396
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number BO-OPS1B Brand Name Bogen Manufacturer Bogen Communications International, Inc Manufacturer Part Number OPS1B Product Model OPS1B Product Name Orbit OPS1 Pendant Speaker Product Series OPS Product Type Speaker Weight 10lb
-
Impedance 16 ohms
-
Maximum Frequency Response 19 kHz Minimum Frequency Response 45Hz
-
Application/Usage High Ceiling, Open Space Environments Color Gray Depth 9.25"
-
Diameter 15" Mount Type Ceiling Mount
-
Limited Warranty 1-Year
-
Country of Origin CN Package Contents - Orbit OPS1 Pendant Speaker
- 3 x Suspension Cables
- 3 x Forged Eye Bolts
- 3 x Nuts
- 1 x Quick Snap Clip
- 1 x Snap Lock Input Connector
