Intellinet 523318 8-Port Fast Ethernet Office Switch

Brand: Intellinet
ADI #:42-523318 Model #: 523318  Name: Intellinet 523318 8-Port Fast Ethernet Office Switch
  • Effectively increases available bandwidth on your network
  • Features 8 networking ports to easily establish a local network or expand your existing one
  • No need to deal with power supply issues, the switch comes with a separate AC adapter to power up the unit

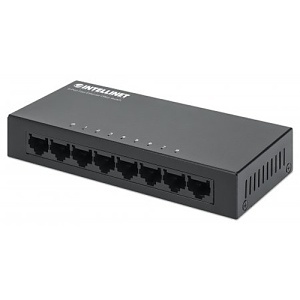

Image of 42-523318

Product Overview

Easily add more computers or other Ethernet devices to your network

The INTELLINET NETWORK SOLUTIONS 8-Port Fast Ethernet Office Switch is perfect for the small and medium-size business looking for a durable switch that is reliable and easy to install. The metal case is more durable than a plastic enclosure, and is very appropriate for locations with potentially harsh environments, such as a warehouse, factory or wiring closet.

Green Ethernet Technology
More often than not, a network switch does not utilize all its ports at all times. Normally, when a computer, notebook, network printer or other network device is powered down, the switch continues to consume the same amount of power as if it were active. Now, thanks to the new energy efficient IEEE 802.3az technology, the Intellinet 10/100 Mbps switch detects link status to all connected devices and reduces the power usage of ports not in use. In addition, the Intellinet switch can adjust the level of power output based on the length of the network cable connected to a particular port. With the Intellinet Network Solutions Fast Ethernet Office Switch you will enjoy maximum network performance, but when things slow down it automatically scales back power usage to conserving energy and save money.

Versatile
The Fast Ethernet Office Switch connects up to eight computers, servers, printers, switches or any other Ethernet devices at 10 or 100 Mbps over Ethernet cables, and works with any operating system.

Easy to Install and Maintain
The auto features of this switch make installation Plug and Play and hassle free. There is no configuration required, and you don't need to worry about using special cables for uplink ports, since each port is equipped with Auto MDI/MDIX crossover.

General Information

Name : Intellinet 523318 8-Port Fast Ethernet Office Switch , Intellinet
Category : Network Switches
UPC Code : 766623523318

Specifications

General Information

ADI Part Number : 42-523318
Brand Name : Intellinet
Manufacturer : IC INTRACOM
Manufacturer Part Number : 523318
Product Model : 523318
Product Name : 8-Port Fast Ethernet Office Switch
Product Type : Ethernet Switch
Weight (Approximate) (g) : 420

Technical Information

Media Type Supported : Twisted Pair
Power Consumption : 1.60W

Interfaces/Ports

Modular : No
Port/Expansion Slot Details : 8 x Fast Ethernet Network
Stack Port : No
Total Number of Network Ports : 8
Uplink Port : No

Media & Performance

Network Technology : 10/100Base-TX

Network & Communication

Ethernet Technology : Fast Ethernet
Layer Supported : 2

Physical Characteristics

Form Factor : Desktop Mount
Height : 1"
Height (mm) : 25
Product Color : Black
Weight (Approximate) : 14.82 oz
Width : 6.1"
Width (mm) : 155

Power Description

PoE (RJ-45) Port : No
Power Consumption (W) : 1.600
Power Source : AC Adapter

Product Information

Length : 3.3"
Length (mm) : 85

Warranty

Limited Warranty : 3 year

Miscellaneous

Package Contents : <ul><li>8-Port Fast Ethernet Office Switch</li><li>External Power Adapter</li><li>User Manual</li></ul>
TAA Compliant : yes
