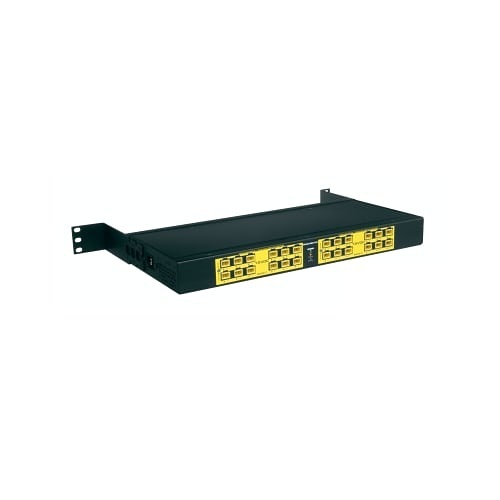

Middle Atlantic PD-DC-300-12V DC PDU Series 300W 12V Power Distribution Unit
PD-DC-300-12V|NO-PDDC30012
Middle Atlantic PD-DC-300-12V DC PDU Series 300W 12V Power Distribution Unit
PD-DC-300-12V|NO-PDDC30012
Key Features
What's Included
- Industry-leading number of outputs with power distributed to as many as 24 devices
- Maximum current capacity, up to 300W of power: 12V, 25A Max (300W)
- Reliable multi-level protection on both AC input and DC outputs to ensure maximum uptime: MOV surge and overload protection on the AC input, Individual redundancy built in with auto-resetting PTC overload protection on each individual output
Key Features
What's Included
- Industry-leading number of outputs with power distributed to as many as 24 devices
- Maximum current capacity, up to 300W of power: 12V, 25A Max (300W)
- Reliable multi-level protection on both AC input and DC outputs to ensure maximum uptime: MOV surge and overload protection on the AC input, Individual redundancy built in with auto-resetting PTC overload protection on each individual output
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
What's Included
- Industry-leading number of outputs with power distributed to as many as 24 devices
- Maximum current capacity, up to 300W of power: 12V, 25A Max (300W)
- Reliable multi-level protection on both AC input and DC outputs to ensure maximum uptime: MOV surge and overload protection on the AC input, Individual redundancy built in with auto-resetting PTC overload protection on each individual output
Middle Atlantic by Legrand
Middle Atlantic PD-DC-300-12V DC PDU Series 300W 12V Power Distribution Unit
PD-DC-300-12V | NO-PDDC30012
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Clean up your rack by replacing messy, space consuming wall warts and power strips with the Select Series DC Power Distribution designed for AV, security, and networking applications. The DC Power Distribution PDUs allow you to optimize installations that involve a multitude of devices in varying voltages. The PDUs provide high current capacity to an extensive number of outputs, maximizing the same voltage in a single unit or splitting between the most popular voltages. Additionally, with flexible mounting options, you can bring DC Power to a typical rack unit, small enclosure, or wall box. Plug it in, feel confident, and simply focus on creating an amazing AV experience. 12V, 25A Max (300W) Industry-leading number of outputs. Power as many as 24 devices. Basic surge protection and overload protection on the AC input. Individual redundancy built in with auto-resetting PTC overload protection on each individual output. Ultimate mounting flexibility. The reversible, adjustable mounting ears support many mounting methods. You can even mount the unit to the back or the side of the rack! Color-coded screw terminal connectors with industry standard voltages and polarity labeling are included for easy identification. 5 volts indicated by orange connectors. 12 volts indicated by yellow connectors. 24 volts indicated by red connectors. 18 volts indicated by blue connectors. LED indicator lights show activity on each output and alert you to maximum capacity on each voltage bank. The ability to trim your power cords to a suitable length leaves less cable to manage, enhancing aesthetics and increasing airflow. The ultra-quiet, thermostatic temperature-controlled fan has automatic speed adjustment to keep your PDU from overheating.
Main Features
- Industry-leading number of outputs with power distributed to as many as 24 devices
- Maximum current capacity, up to 300W of power: 12V, 25A Max (300W)
- Reliable multi-level protection on both AC input and DC outputs to ensure maximum uptime: MOV surge and overload protection on the AC input, Individual redundancy built in with auto-resetting PTC overload protection on each individual output
- Greater mounting flexibility with multi-mount design that fits in 1 rackspace or can mount at the back or side of the rack simply by rotating mounting brackets
- Color-coded screw terminal connectors with industry standard 12V and 24V and polarity labeling for easy identification
- 120V-230V input supports both North American and European installations
- LED indicator lights alerting maximum capacity on each voltage bank
- Leads trimmed to suitable length leaves less cable to manage, enhancing aesthetics and increasing airflow
- Ultra-quiet, thermostatic temperature controlled fan with automatic speed adjustment
- Hardware kit includes flexible mounting hardware, color-coded screw terminal connectors to connect devices, and a 6ft IEC power cord
General Information
Name: Middle Atlantic PD-DC-300-12V DC PDU Series 300W 12V Power Distribution Unit
Category: Middle Atlantic by Legrand, Batteries & Power Supplies, Power Management, Power Distribution Units
UPC Code: 656747346484
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number NO-PDDC30012 Brand Name Middle Atlantic by Legrand Manufacturer Legrand Group Manufacturer Part Number PD-DC-300-12V Product Model PD-DC-300-12V Product Name PD-DC-300-12V 24-Outlets PDU Product Series PD Product Type PDU Sector Residential AV
-
Output Voltage 12V DC PDU Type Switched Receptacle Detail 24 x Screw Terminal Receptacle Type Screw Terminal
-
TAA Compliant No
-
Depth 7.3" Form Factor Rack Height 1.8" Rack Height 1U Width 19"
-
Input Current 25A Input Voltage 120V AC, 230V AC Plug/Connector Type NEMA 5-15P
-
Mount Type Rack Mount Protection Type Overload Protection, Surge Protection
-
Limited Warranty 3-Year
-
Country of Origin CN Environmentally Friendly Yes Package Contents - PD-DC-300-12V 24-Outlets PDU
- Flexible Mounting Hardware
- Color-coded Screw Terminal Connectors to Connect Devices
- 1 x 6ft IEC Power Cord
