On-Q ENP20605NA 20" Plastic Hinged Door with Trim Ring, 5-Pack (Replaces ENP20605)

Brand: On-Q by Legrand
ADI #:H4-ENP20605N Model #: ENP20605NA  Name: On-Q ENP20605NA 20" Plastic Hinged Door with Trim Ring, 5-Pack (Replaces ENP20605)
  • Made with ABS plastic, the enclosure is designed to integrate wireless devices without interference
  • Adds 1.2'' of depth for cable headroom and 3rd party device compatibility
  • Extra venting along the vertical plane allows for superior heat dissipation

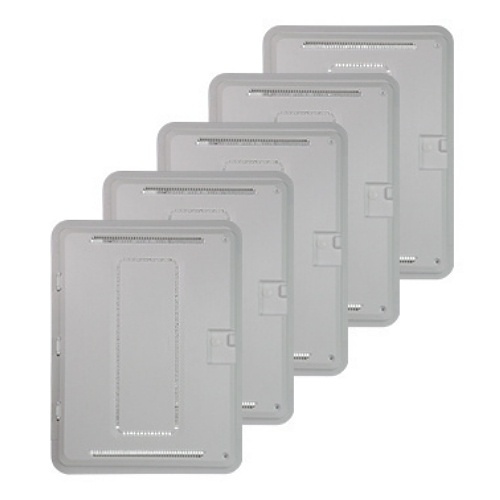

On-Q Plastic 20IN Hinged Door With Trim Ring (5 Pack)

Product Overview

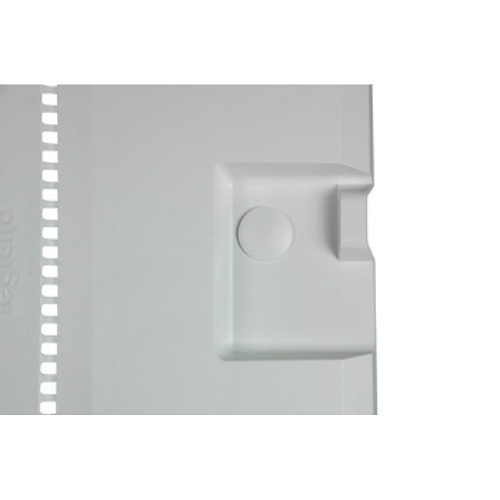

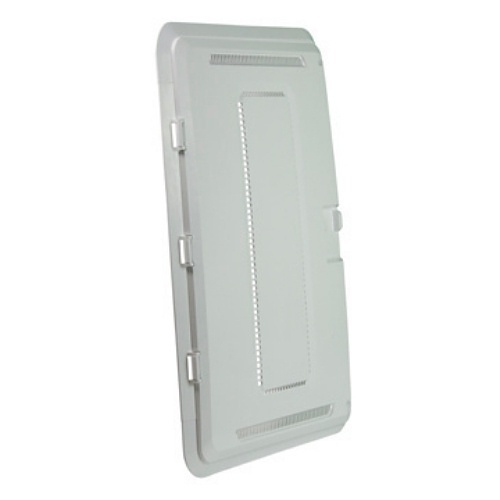

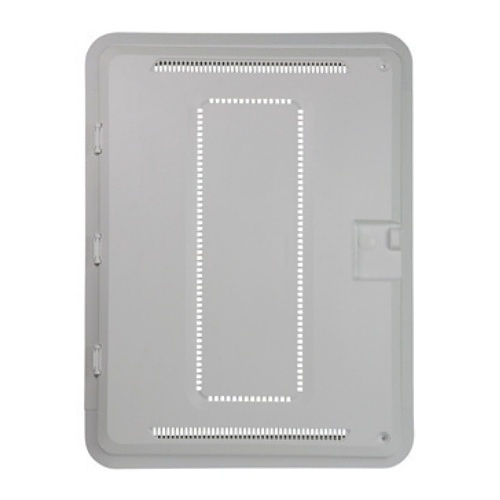

The hinged door and trim ring easily attach to the ENP2080-NA plastic enclosure (ENP2080-5NA Bulk Pack) and is reversible, allowing the door to swing from right or left, adding flexibility to the installation. Purchase during the project trim-out phase to complete installation. The hinged cover has extra venting along the center plane of the door to keep components cool and in lockable with provided screws or optional lock.

General Information

Name : On-Q ENP20605NA 20" Plastic Hinged Door with Trim Ring, 5-Pack (Replaces ENP20605) , On-Q by Legrand
Category : Structured Wiring Enclosures
UPC Code : 804428433866

Specifications

General Information

ADI Part Number : H4-ENP20605N
Brand Name : On-Q by Legrand
Manufacturer : Legrand Group
Manufacturer Part Number : ENP20605NA
Product Model : ENP20605NA
Product Name : Plastic 20IN Hinged Door With Trim Ring (5 Pack)
Product Type : Mounting Box
Weight (Approximate) (g) : 3400

Technical Information

Material : ABS

Others

ADI Part Number Replaces : H4-ENP20605
Model Number Replaces : ENP20605

Physical Characteristics

Application/Usage : Stud, wall
Color : White
Depth : 1.2"
Depth (mm) : 30.48
Height : 44.2"
Height (mm) : 1122.68
Weight (Approximate) : 7.50 lb
Width : 17.5"
Width (mm) : 444.754

Miscellaneous

Environmental Certification : ROHS
Environmentally Friendly : Yes
