Simply45 S45-1000 CAT5e Unshielded Standard WE, SS Rj45, 100-Pack
S45-1000|G0-S451000
Simply45 S45-1000 CAT5e Unshielded Standard WE, SS Rj45, 100-Pack
S45-1000|G0-S451000
Key Features
- Standard Mod Plug
- 24AWG Solid , 28-26AWG Stranded
- Conductor Range 0.95 – 1.05mm (0.037″ – 0.041″)
Key Features
- Standard Mod Plug
- 24AWG Solid , 28-26AWG Stranded
- Conductor Range 0.95 – 1.05mm (0.037″ – 0.041″)
Key Features
- Standard Mod Plug
- 24AWG Solid , 28-26AWG Stranded
- Conductor Range 0.95 – 1.05mm (0.037″ – 0.041″)
Please sign in to view pricing and availability and to add to cart.
Accessories
Crimping & Punch Down Tools
Sign In for Dealer Pricing
Cable Strain Reliefs
Sign In for Dealer Pricing
Crimping & Punch Down Tools
Sign In for Dealer Pricing
Cutting Tools
Sign In for Dealer Pricing
Crimping & Punch Down Tools
Sign In for Dealer Pricing
Cable Strain Reliefs
Sign In for Dealer Pricing
Cutting Tools
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview
Simply45™ is the industry-leading brand for RJ45 modular plug innovation and performance solutions.

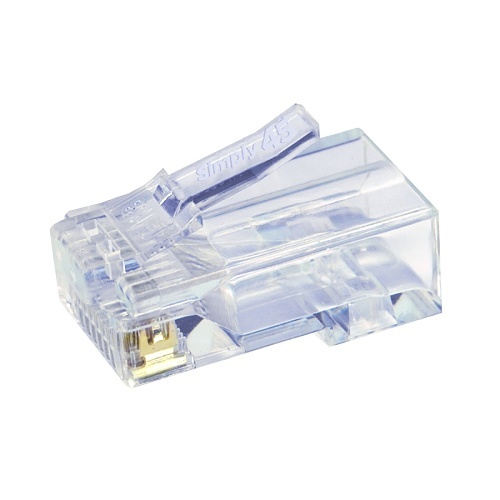

Our S45-1000 Standard WE/SS (8P8C) RJ45 modular plugs incorporate the following features:
Single Piece Design. The S45-1000 is a single piece unshielded Standard WE/SS RJ45 modular plug for use with unshielded LAN cables. No-load bar required. Supports performance standards: ANSI/TIA 568.2-D for Cat5e; ISO/IEC 11801 Class D; and applicable patch cord standards for Cat6 and Cat5e.
3 Prong Pin Design with 50µ of True 24ct Gold Plating. All Simply45™ Standard WE/SS RJ45 modular plugs use only 50µ 24ct gold plated 3-Prong pin design instead of a 2-Prong design as found on most other pass- through RJ45 modular plugs. A 3-Prong pin provides 3 points of contact with the copper wire conductor instead of 2. This improves electrical performance and signal integrity. A 3-prong pin also holds stronger onto the wire conductors. To learn more about why we only use 3-Prong pins and 50µ 24ct gold plated contacts,
Solid and Stranded LAN Cables. The S45-1000 is ideal for most Cat5e UTP (unshielded twisted pair) solid 24 AWG LAN cables and stranded 28-26 AWG with wire conductor sizes 0.95mm - 1.05mm (0.037" - 0.041"). The S45-1500 works great with most Cat6 and Cat5e stranded unshielded LAN cables used for patch cords/leads. If your stranded unshielded LAN cable has a larger diameter than 6.5mm (0.255"), then our S45-1100 may be the right Standard WE/SS solution for you. We also have several options in our Pass-Through Product Line.
Main Features
- Standard Mod Plug
- 24AWG Solid , 28-26AWG Stranded
- Conductor Range 0.95 – 1.05mm (0.037″ – 0.041″)
- Max Cable OD 6.4mm (0.252″)
- UL94 V0 Commercial (Plenum, LSZH) Rated
- Blue Tint
- 3 Prong Style
- 50µ 24ct Gold
General Information
Name: Simply45 S45-1000 CAT5e Unshielded Standard WE, SS Rj45, 100-Pack
Category: Simply45, Data Comm & Networking, Cable Connectors, Network Cable Connectors
UPC Code: 817777017755
Country of Origin: Taiwan. Country of origin is subject to change.
Specifications
-
ADI Part Number G0-S451000 Brand Name Simply45 Manufacturer SIMPLY45 LLC Manufacturer Part Number S45-1000 Packaged Quantity 100 Product Line Simply45 Product Model S45-1000 Product Name S45-1000 - Cat5e Unshielded - Standard WE/SS RJ45 Product Series Standard Series Product Type Network Connector
-
Cable Type Category 5e Contact Plating Gold Shielding No
-
TAA Compliant Yes
-
Connector Type RJ45 Network Male Number of Contacts 8
-
Color Blue
-
Limited Warranty Lifetime
-
Country of Origin TW Environmental Certification RoHS Environmentally Friendly Yes Features 3 Prong Contact, 50µ Gold, Color Tinted, Crosstalk Protection, Far End Cross Talk (FEXT), Fire Retardant, Near End Cross Talk (NEXT), Plenum, PoE, PoE+, PoE++, Polycarbonate, Solid, Stranded
