Simply45 S45-1601P Pro Series CAT6 Unshielded, Pass-Through RJ45 with Cap45, Clamshell 50-Piece
S45-1601P|G0-S451601P
Simply45 S45-1601P Pro Series CAT6 Unshielded, Pass-Through RJ45 with Cap45, Clamshell 50-Piece
S45-1601P|G0-S451601P
Key Features
What's Included
- Pass Through with Cap45
- 23AWG Solid, 26-24AWG Stranded
- Conductor Range 0.95 – 1.05mm (0.037″ – 0.041″)
Key Features
What's Included
- Pass Through with Cap45
- 23AWG Solid, 26-24AWG Stranded
- Conductor Range 0.95 – 1.05mm (0.037″ – 0.041″)
Key Features
What's Included
- Pass Through with Cap45
- 23AWG Solid, 26-24AWG Stranded
- Conductor Range 0.95 – 1.05mm (0.037″ – 0.041″)
Simply45
Simply45 S45-1601P Pro Series CAT6 Unshielded, Pass-Through RJ45 with Cap45, Clamshell 50-Piece
S45-1601P | G0-S451601P
Please sign in to view pricing and availability and to add to cart.
Accessories
Crimping & Punch Down Tools
ADI # G0-S45C101
MODEL # S45-C101
S45-C101|G0-S45C101
Sign In for Dealer Pricing
Crimping & Punch Down Tools
ADI # G0-S45S01YL
MODEL # S45-S01YL
S45-S01YL|G0-S45S01YL
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview

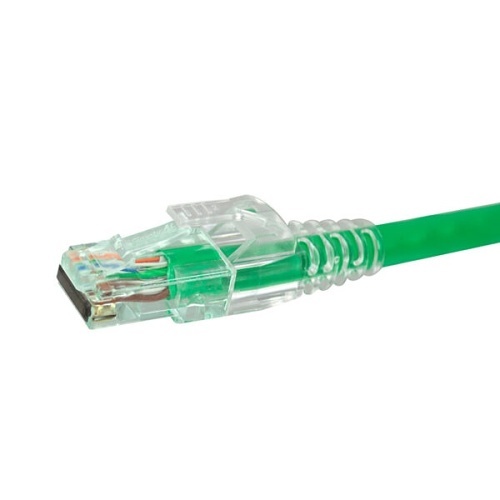

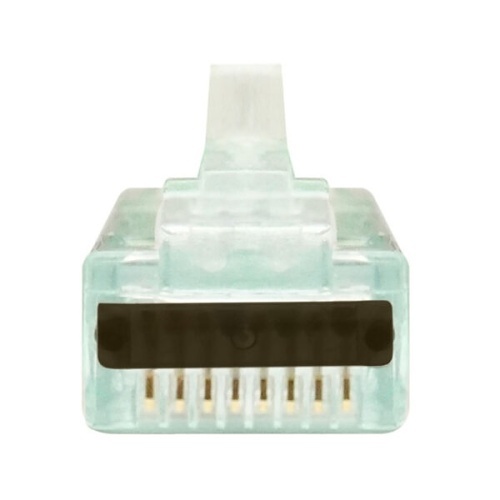

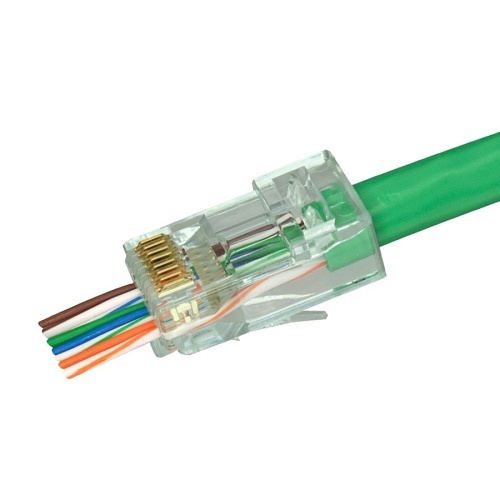

Simply45® is the industry-leading brand for RJ45 modular plug innovation and performance solutions. Our S45-1601P is the same as our S45-1600P except is packaged in a convenient 50-piece plastic clamshell. The Simply45® ProSeries introduces the exclusive Cap45® (PATENT 10,811,831 B1). Cap45® is an isolation cap/bar that snaps onto the front of the pass-through RJ45 plug after termination, covering the exposed wire ends. Cap45® prevents electrical shorting in the RJ45 socket due to improperly trimmed wires or in device sockets that may not be 100% compliant. With Cap45®, any electrical risks associated with exposed wire ends are now eliminated completely. Cap45® is a MUST-HAVE for all pass-through RJ45 modular plugs used in commercial and certified system terminations.
Main Features
- Pass Through with Cap45
- 23AWG Solid, 26-24AWG Stranded
- Conductor Range 0.95 – 1.05mm (0.037″ – 0.041″)
- Max Cable OD 7.0mm (0.276″)
- UL94 V0 Commercial (Plenum, LSZH) Rated
- Green Tint
- 3 Prong Style
- 50µ 24ct Gold
General Information
Name: Simply45 S45-1601P Pro Series CAT6 Unshielded, Pass-Through RJ45 with Cap45, Clamshell 50-Piece
Category: Simply45, Data Comm & Networking, Cable Connectors, Network Cable Connectors
UPC Code: 810093721733
Country of Origin: Taiwan. Country of origin is subject to change.
Specifications
-
ADI Part Number G0-S451601P Brand Name Simply45 Manufacturer SIMPLY45 LLC Manufacturer Part Number S45-1601P Packaged Quantity 50 Product Line Simply45 Product Model S45-1601P Product Name PRO Network Connector Product Series ProSeries Product Type Network Connector Weight 4oz
-
Cable Type Category 6 Connector Plating Gold, Nickel Contact Plating Gold Shielding No
-
TAA Compliant Yes
-
Connector Type RJ45 Network Male Number of Contacts 8
-
Color Green Package Type Jar
-
Limited Warranty Lifetime
-
Country of Origin TW Environmental Certification RoHS Environmentally Friendly Yes Features 3 Prong Contact, 50µ Gold, Color Tinted, Crosstalk Protection, Far End Cross Talk (FEXT), Fire Retardant, HDBaseT, Near End Cross Talk (NEXT), Plenum, PoE, PoE+, PoE++, Polycarbonate, Solid, Stranded Package Contents - PRO Network Connector
- 55 x Cap45
