Trine 4100LB US32D 4100 Series Electric Strike 12/24V AC/DC, (4) 4-7/8" 1-1/4", Satin Stainless Steel
4100LB US32D|0L-4100LBUS3
Trine 4100LB US32D 4100 Series Electric Strike 12/24V AC/DC, (4) 4-7/8" 1-1/4", Satin Stainless Steel
4100LB US32D|0L-4100LBUS3
Key Features
What's Included
- Grade 1 Electric Strike
- -- heavy duty construction, 1,000,000+ Life cycles -- 3,250+ lbs Holding Force
- Four popular faceplates included
Key Features
What's Included
- Grade 1 Electric Strike
- -- heavy duty construction, 1,000,000+ Life cycles -- 3,250+ lbs Holding Force
- Four popular faceplates included
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
What's Included
- Grade 1 Electric Strike
- -- heavy duty construction, 1,000,000+ Life cycles -- 3,250+ lbs Holding Force
- Four popular faceplates included
Trine Access Technology
Trine 4100LB US32D 4100 Series Electric Strike 12/24V AC/DC, (4) 4-7/8" 1-1/4", Satin Stainless Steel
4100LB US32D | 0L-4100LBUS3
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

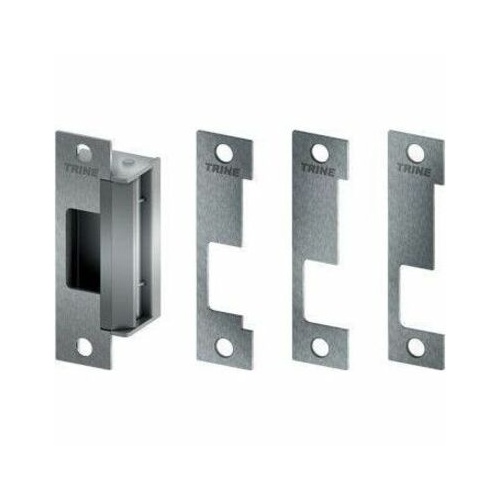

We include the 4 most used faceplates to make specifying and installing easy
Covers 90%+ of Cylindrical & Mortise Lock configurations (without deadbolt), plus faceplates can be kept & used to help accomodate for door sag.
Main Features
- Grade 1 Electric Strike
- -- heavy duty construction, 1,000,000+ Life cycles -- 3,250+ lbs Holding Force
- Four popular faceplates included
- -- including the 4 most used faceplates in the box makes specifying and installing easy Covers 90%+ of Cylindrical & Mortise Lock configurations (without deadbolt), plus faceplates can be kept & used to help accomodate for door sag.
- 1 - 3/8" Shallow backset
- -- the 4100 low profile electric strike can be used in 2" fire rated frames with 1/2" sheetrock ingress
- Low Current Draw
- -- .240 Amp at 12DC makes it very
- PoE Friendly12 & 24DC :: 12 through 24 AC.
- All the low voltage and amperage flexibility you need
General Information
Name: Trine 4100LB US32D 4100 Series Electric Strike 12/24V AC/DC, (4) 4-7/8" 1-1/4", Satin Stainless Steel
Category: Trine Access Technology, Access Control, Locking Devices, Electric Strikes
UPC Code: 197163016716
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number 0L-4100LBUS3 Brand Name Trine Access Technology Manufacturer Trine Access Technology Manufacturer Part Number 4100LB US32D Product Name 4100 Electric Strike Product Series 4100 Product Type Electric Strike
-
Compatible Door Lock Type Cylindrical, Mortise
-
Application/Usage Door Height 4.88" Width 3.38"
-
Input Current 240 mA Input Voltage 12V AC, 12V DC, 24V AC, 24V DC Power Source AC
-
Country of Origin US Package Contents - 4100 Electric Strike
- 4 x Faceplates
