Eaton Tripp Lite SRW15US SmartRack Low-Profile Switch-Depth Wall Mount Half-Height Rack Enclosure with Hinged Back, 20.5" (52cm), 200lb (90.7kg), 15U
SRW15US|TC-SRW15US
Eaton Tripp Lite SRW15US SmartRack Low-Profile Switch-Depth Wall Mount Half-Height Rack Enclosure with Hinged Back, 20.5" (52cm), 200lb (90.7kg), 15U
SRW15US|TC-SRW15US
Key Features
What's Included
- 15U rack space for EIA-standard 19 in. equipment
- 200 lb maximum load capacity
- Hinged back for easy access to equipment
Key Features
What's Included
- 15U rack space for EIA-standard 19 in. equipment
- 200 lb maximum load capacity
- Hinged back for easy access to equipment
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
What's Included
- 15U rack space for EIA-standard 19 in. equipment
- 200 lb maximum load capacity
- Hinged back for easy access to equipment
Eaton Tripp Lite
Eaton Tripp Lite SRW15US SmartRack Low-Profile Switch-Depth Wall Mount Half-Height Rack Enclosure with Hinged Back, 20.5" (52cm), 200lb (90.7kg), 15U
SRW15US | TC-SRW15US
Please sign in to view pricing and availability and to add to cart.
Accessories
Keystone Jacks
ADI # 0E-C6KEYBL10
MODEL # 0E-C6KEYBL10
0E-C6KEYBL10|0E-C6KEYBL10
Sign In for Dealer Pricing
Rack Bases, Doors & Panels
ADI # TC-SR1UPANEL
MODEL # SR1UPANEL10
SR1UPANEL10|TC-SR1UPANEL
Sign In for Dealer Pricing
Cable Ducts
ADI # TC-SRCABDCT1
MODEL # SRCABLEDUCT1U
SRCABLEDUCT1U|TC-SRCABDCT1
Sign In for Dealer Pricing
Cable Managers
ADI # TC-SRCABL1U
MODEL # SRCABLERING1U
SRCABLERING1U|TC-SRCABL1U
Sign In for Dealer Pricing
Cable Managers
ADI # TC-SRCABL2U
MODEL # SRCABLERING2U
SRCABLERING2U|TC-SRCABL2U
Sign In for Dealer Pricing
Rack Accessories
ADI # TC-SRCAGEN5M
MODEL # SRCAGENUT5MM
SRCAGENUT5MM|TC-SRCAGEN5M
Sign In for Dealer Pricing
Rack Accessories
ADI # TC-SRCAGENUT
MODEL # SRCAGENUTS
SRCAGENUTS|TC-SRCAGENUT
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview

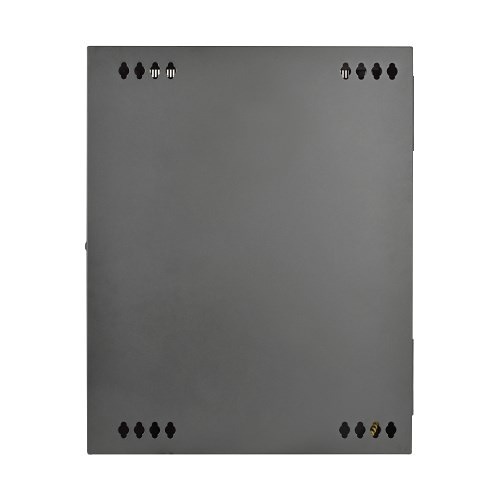

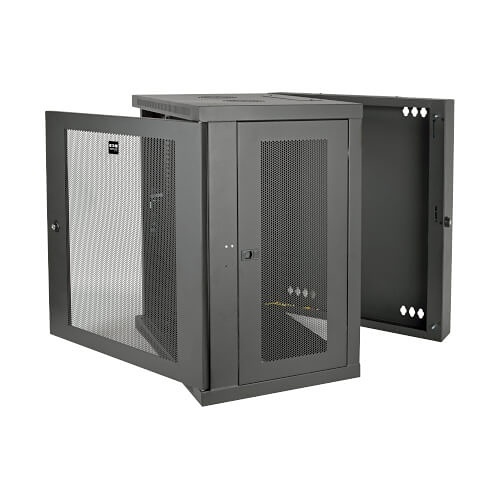

The SRW15US SmartRack 15U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19" rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 lb (90.7 kg). The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing. The SRW15US comes fully assembled and ready to mount to the wall, or use the optional SRCASTER rolling caster kit (sold separately) to make it a mobile rack. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8" increments to accommodate equipment up to 20.5 " deep, such as network switches and patch panels.
Main Features
- 15U rack space for EIA-standard 19 in. equipment
- 200 lb maximum load capacity
- Hinged back for easy access to equipment
- Reversible doors for flexible installation
- Lockable side panels and doors for security
- Vented panels for optimal airflow
- Ships fully assembled for quick setup
- Wall-mount or optional caster kit for mobility
- Adjustable rails for equipment up to 20.5 in. deep
- Complies with PCI DSS security standards
General Information
Name: Eaton Tripp Lite SRW15US SmartRack Low-Profile Switch-Depth Wall Mount Half-Height Rack Enclosure with Hinged Back, 20.5" (52cm), 200lb (90.7kg), 15U
Category: Data Comm & Networking, Racks & Enclosures, Rack Cabinets & Frames
UPC Code: 037332183866
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number TC-SRW15US Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number SRW15US Product Line SmartRack Product Model SRW15US Product Name SmartRack 15U Wall-Mount Rack Enclosure Cabinet Product Type Rack Cabinet Weight 88.20lb
-
Color Black Depth 21.6" Form Factor Wall Mount Height 30.3" Material Steel Maximum Weight Capacity 225 lb Rack Depth 20.50" Rack Height 15U Rack Width 19" Width 23.6"
-
Limited Warranty 5-Year
-

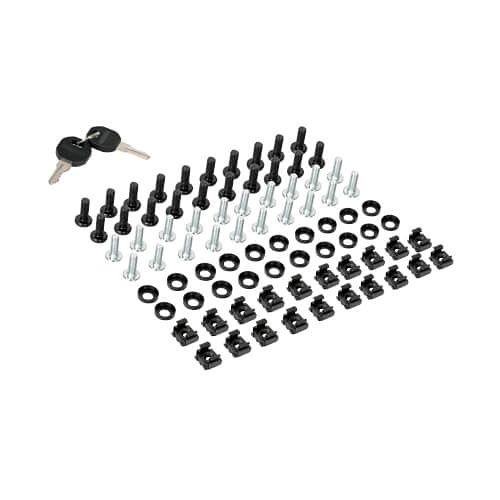

Assembly Required No Country of Origin CN Environmental Certification RoHS Environmentally Friendly Yes Features Cable Management, Lockable, Lockable Door, Removable Door, Removable Side Panel, Vented Top Package Contents - SRW15US SmartRack 15U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet
- (20) M6 screws
- (20) M6 cage nuts
- (20) M6 washers
- (20) 12-24 screws
- (2) Keys
- Owner’s manual
