Product Overview

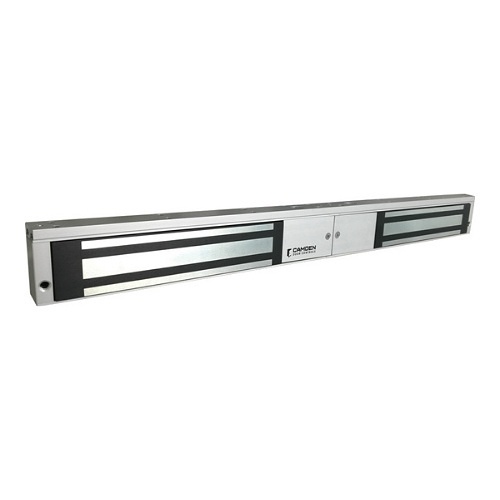

Camden CX-92 Series double door magnetic locks offer the best performance and value. There are 600lb. and 1200lb. models available with the option of a built-in 'TDS' module, that provides an adjustable timer, lock sensor, door status switch, relay and LED.
General Information
Name : Camden CX-92S-06TDS 600 lbs. Surface Mount Double Door Magnetic Lock with Adjustable Timer and Door Switch , Camden Door Controls
Category : Magnetic Locks
UPC Code : 670454155597
Country of Origin : China. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : CM-CX92S06TD
Brand Name : Camden
Manufacturer : Camden Door Controls
Manufacturer Part Number : CX-92S-06TDS
Product Line : eXACT
Product Model : CX-92S-06TDS
Product Name : 600 Lbs. Surface Mount Double Doors
Product Series : CX-92
Product Type : Magnetic Lock
Technical Information
Door Supported : Double Door
Holding Force (g) : 272155.422
Material : Aluminum
Physical Characteristics
Form Factor : Surface Mount
Lock Depth : 0.67"
Lock Depth (mm) : 17
Lock Height : 1.86"
Lock Height (mm) : 48
Lock Width : 19.61"
Lock Width (mm) : 498
Power Description
Input Current : 250 mA, 500 mA
Input Current (A) : 0.25, 0.5
Input Voltage : 12V DC, 24V DC
Input Voltage (V DC) : 12, 24
Product Information
Finishing : Anodized Aluminum
Holding Force : 600 lb
Warranty
Limited Warranty : Lifetime
Miscellaneous
Certifications & Standards : UL and ULC listed
Compatibility : Access/Egress systems
Features : Adjustable Timer, Relock Time Delay (RTD), Vandal resistant, Weather resistant
