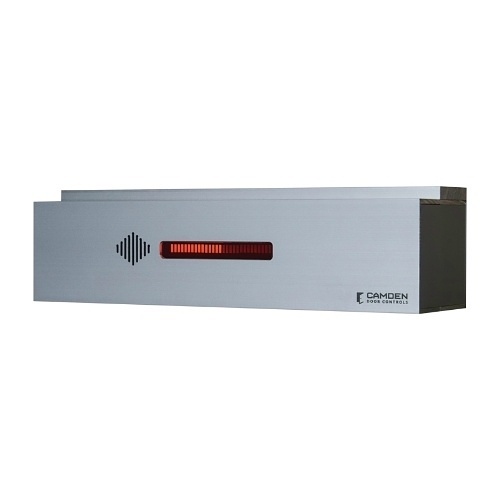

Image of CM-CXDE122B1
Shop all Camden Door Controls

Camden CX-DE1220-B1 Single and Tandem Maglock, Fixed 15 Second Exit Delay

CX-DE1220-B1|CM-CXDE122B1
Shop all Camden Door Controls

Camden CX-DE1220-B1 Single and Tandem Maglock, Fixed 15 Second Exit Delay

CX-DE1220-B1|CM-CXDE122B1
Key Features
  • Single and double door models
  • Nuisance delay period 1, 2 or 3 seconds
  • Voice annunciator & LED count-down timer
Key Features
  • Single and double door models
  • Nuisance delay period 1, 2 or 3 seconds
  • Voice annunciator & LED count-down timer

Sign In for Dealer Pricing

Become an ADI Customer
Key Features
  • Single and double door models
  • Nuisance delay period 1, 2 or 3 seconds
  • Voice annunciator & LED count-down timer
Camden Door Controls

Camden CX-DE1220-B1 Single and Tandem Maglock, Fixed 15 Second Exit Delay

CX-DE1220-B1 | CM-CXDE122B1

Please sign in to view pricing and availability and to add to cart.

Recommended

0E-MAG1200DB | 0E-MAG1200DB
ADI PRO
ADI PRO 0E-MAG1200DB 1200 lb 12/24VDC Double Door Maglock
0E-MAG1200DB | 0E-MAG1200DB
Sign In for Dealer Pricing

Accessories

Overview
Specifications
Documents

Product Overview

CX-DE1200 Series delayed egress magnetic locks feature heavy-duty construction, 1,200 lbs. holding force and a range of models and field selectable operation for varied applications, including retail, institutional or healthcare buildings.

Delayed egress magnetic locks are UL and ULC listed with a selection of models factory configured to meet North American code requirements. The innovative human voice and LED count down timer offers immediate comprehension of status for building occupants.

Main Features

  • Single and double door models
  • Nuisance delay period 1, 2 or 3 seconds
  • Voice annunciator & LED count-down timer
  • Choice of sensor activation: Door Motion, Door Exit Device with momentary N/O contact, Push Bar with momentary N/O contact
  • Auto/manual start-up on power restore
  • Vandal resistant proximity trigger sensor
  • Auto sensing power input with polarity protection
  • Anti-Pass back/Auto Re-Lock
  • Accessories: sounder, speaker and reset station

General Information

Name: Camden CX-DE1220-B1 Single and Tandem Maglock, Fixed 15 Second Exit Delay
Category: Camden Door Controls, Access Control, Locking Devices, Magnetic Locks
UPC Code: 670454207234
Country of Origin: Malaysia. Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
