Product Overview

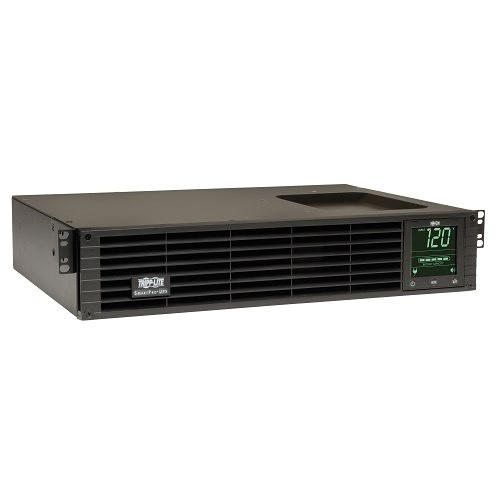

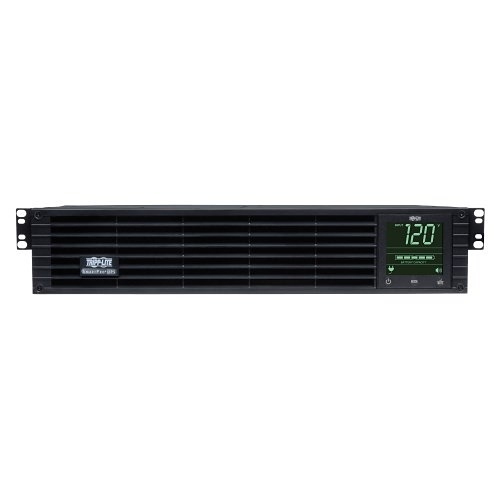

The SMART1500RM2UN SmartPro® 120V 1.5kVA 1.35kW Line-Interactive Sine Wave UPS provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. Ideal for backing up servers and network storage devices, the SMART1500RM2UN switches to battery mode in milliseconds to keep your connected equipment running long enough to save files and shut down safely with no data loss.

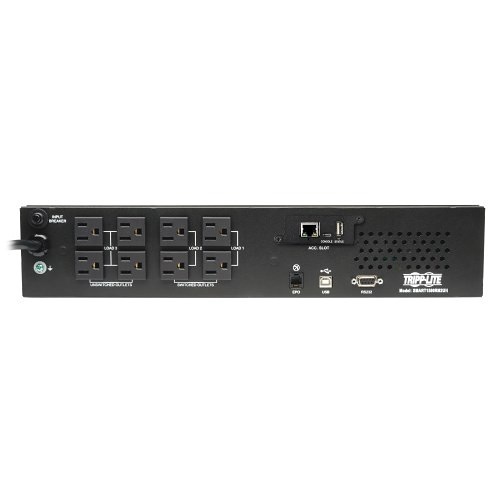

Featuring eight NEMA 5-15R outlets (four switchable) and a 10-ft. (3.05 m) power cord with 120V NEMA 5-15P input, the SMART1500RM2UN has an internal battery that provides 13 minutes of support at half load and 4.5 minutes at full load.
The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
Automatic voltage regulation (AVR) maintains 120V nominal output over an input range of 83V to 147V without using battery power. EMI/RFI noise filtering improves your equipment's performance and prevents damage.
Package includes:
- SMART1500RM2UN SmartPro 120V 1.5kVA 1.35kW Line-Interactive Sine Wave UPS
- Pre-installed WEBCARDLX network interface
- USB-B to USB-A cable
- Micro-USB to USB-A configuration/console cable
- DB9 cable
- EPO cable
- 4-Post rack mounting hardware
- Owner’s manual
General Information
Name : Tripp Lite SMART1500RM2UN SmartPro 120V 1.5kVA 1.35kW Line-Interactive Sine Wave UPS, 2U Rack, tower, WEBCARDLX Network Interface, LCD, USB, Outlets , Tripp Lite by Eaton
Category : UPS
UPC Code : 037332178237
Country of Origin : China. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : TC-SMT15RM2N
Brand Name : Tripp Lite by Eaton
Manufacturer : Tripp Lite by Eaton
Manufacturer Part Number : SMART1500RM2UN
Packaged Quantity : 1
Product Line : SmartPro
Product Model : SMART1500RM2UN
Product Name : SMART1500RM2UN UPS System with Pre-installed SNMPWEBCARD
Product Type : Line-interactive UPS
Weight (Approximate) (g) : 21092.045
Technical Information
Backup/Run Time (Full Load) : 4.50 Minute
Backup/Run Time (Full Load) (Second) : 270
Backup/Run Time (Half Load) : 13 Minute
Backup/Run Time (Half Load) (Second) : 780
Hot Swappable : Yes
Output Voltage : 200V AC|208V AC|220V AC|230V AC|240V AC
Output Voltage (V AC) : 200, 208, 220, 230, 240
Phase : Single Phase
Receptacle Detail : 8 x NEMA 5-15R
Receptacle Type : NEMA 5-15R
Transfer Time : 4 ms
Transfer Time (Second) : 0.004
Battery Information
Typical Battery Recharge Time : 4.50 Hours
Typical Battery Recharge Time (Second) : 16200
Category Specific Attributes
Output Voltage (V) : 200, 208, 220, 230, 240
Interfaces/Ports
Serial Port : Yes
Management
Network Management : SNMP Manageable
Physical Characteristics
Application/Usage : Server, Storage Device, Telecommunication
Depth : 13.5"
Depth (mm) : 341.63
Form Factor : Rack, Tower
Height : 3.5"
Height (mm) : 87.63
Rack Height : 2U
Weight (Approximate) : 46.50 lb
Width : 17.3"
Width (mm) : 439.42
Power Description
Input Voltage : 120V AC
Input Voltage (V AC) : 120
Plug/Connector Type : NEMA 5-15P
Waveform Type : Pure Sine Wave
Product Information
Load Capacity (VA) (W) : 1500VA|1350W
Load Capacity (W) : 1500.000
Software
Software Included : PowerAlert software
Warranty
Limited Warranty : 2-Year
Miscellaneous
Package Contents : <ul> <li>SMART1500RM2UN UPS System with Pre-installed SNMPWEBCARD</li> <li>Pre-installed WEBCARDLX network interface</li> <li>USB cable</li> <li>DB9 cable</li> <li>EPO cable</li> <li>Mounting hardware</li> <li>Owner's manual</li> </ul>
TAA Compliant : yes
