Eaton Tripp Lite SRW6U SmartRack 6U Wall Mount Mini Rack Enclosure, Low-Profile, Switch-Depth
Eaton Tripp Lite SRW6U SmartRack 6U Wall Mount Mini Rack Enclosure, Low-Profile, Switch-Depth
- 6U low-profile wall-mount rack enclosure
- Accommodates 19 in. rack equipment
- Heavy-duty steel with black powder-coated finish
- 6U low-profile wall-mount rack enclosure
- Accommodates 19 in. rack equipment
- Heavy-duty steel with black powder-coated finish
Sign In for Dealer Pricing
Become an ADI Customer- 6U low-profile wall-mount rack enclosure
- Accommodates 19 in. rack equipment
- Heavy-duty steel with black powder-coated finish
Eaton Tripp Lite SRW6U SmartRack 6U Wall Mount Mini Rack Enclosure, Low-Profile, Switch-Depth
SRW6U | TC-SRW6U
Please sign in to view pricing and availability and to add to cart.
Recommended
Accessories
Product Overview

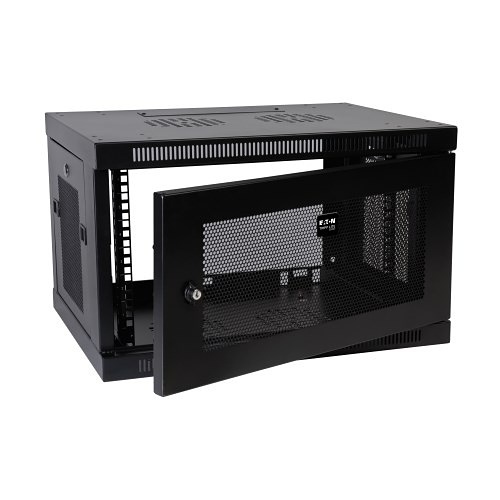

Tripp Lite's 6U SRW6U Network Rack is designed to accommodate EIA-compliant 19 "rack equipment in network cabinets, retail stores, classrooms, administrative areas, and other areas with limited space where equipment It should be safe, organized, and out of the way Constructed of heavy-duty steel with a durable black powder-coated finish, this wall-mount switch supports a maximum load of 200 lbs. [90.7 kg].

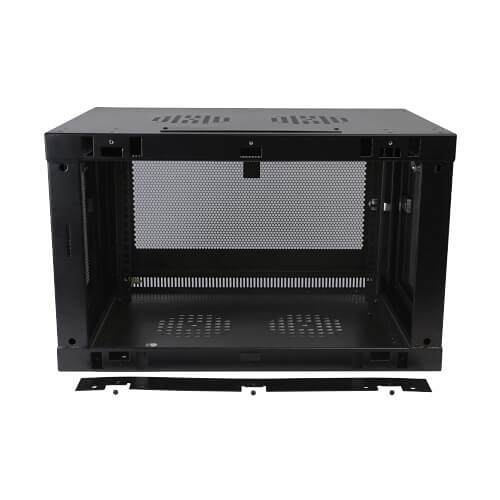

Side panels and front door are lockable to prevent damage, tampering or theft. Removable front, top, bottom, and side panels are vented, allowing air to flow freely to keep equipment cool.The reversible front door can be opened to the left or right by rotating the cabinet 180 ° prior to installation.Convenient top and bottom ports allow easy cable routing.

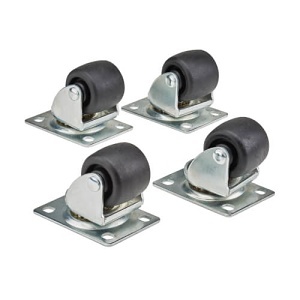

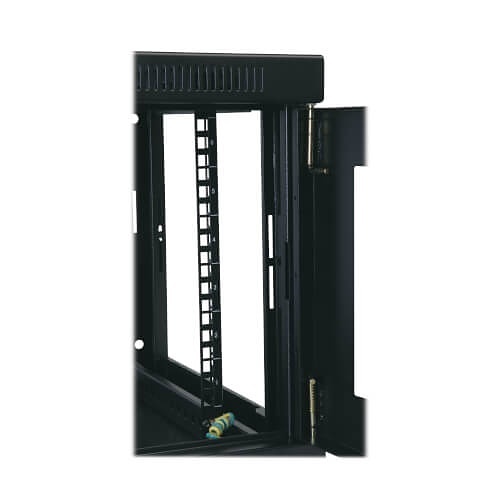

The SRW6U comes fully assembled and ready for wall mounting, or use Tripp Lite's SRCASTER caster set to turn it into a mobile rack.12-24 threaded and square mounting holes and numbered rack spaces make equipment installation easy.Vertical mounting rails adjust in 7/8 "increments to accommodate equipment up to 16.5" [42 cm] deep, such as network switches and patch panels.
Package included
- SRW6U SmartRack 6U Low Profile Depth Switch Cabinet for Wall Mount
- (12) M6 screws
- (12) M6 lock nuts
- (12) M6 cup washers
- (12) 12-24 Screws
- Plate to install removable
- (3) plate screws to install
- (2) Keys
- Owner's manual
Main Features
- 6U low-profile wall-mount rack enclosure
- Accommodates 19 in. rack equipment
- Heavy-duty steel with black powder-coated finish
- 200 lb. maximum load capacity
- Reversible, lockable front door and side panels
- Vented design for optimal airflow
- Quick-release doors and panels for easy access
- Fully assembled for quick deployment
- Includes hardware for wall-mounting
- PCI DSS Compliance for secure data handling
General Information
Specifications
-
ADI Part Number TC-SRW6U Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number SRW6U Product Line SmartRack Product Model SRW6U Product Name SRW6U Wall mount Rack Enclosure Server Cabinet Product Type Rack Cabinet Weight 29 lb
-
Color Black Depth 17.5" Form Factor Wall Mount Height 14.5" Material Steel Maximum Weight Capacity 140 lb Rack Depth 17.5" Rack Height 6U Rack Width 19" Width 23.5"
-
Limited Warranty 5-Year
-
Country of Origin CN Environmental Certification RoHS Environmentally Friendly Yes Features UL 60950-1 Package Contents - SRW6U 6U Server Rack
- (12) M6 screws
- (12) M6 cage nuts
- (12) M6 cup washers
- Mounting hardware
- (2) Keys
- Owner's manual
