Product Overview

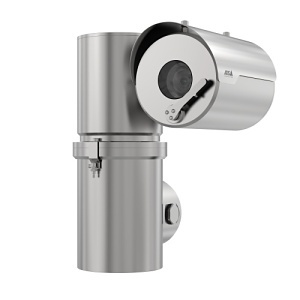

AXIS XPQ1785 is a robust, stainless steel (316L) PTZ camera globally certified for use in potentially combustible environments according to Class I/II/III Div 1 and Zone 1,21 (NEC, CEC, IECEx, ATEX, and more). The built-in smoke alert analytic monitors for signs of smoke or fire. The camera offers total situational awareness with 360° continuous pan and +/- 90° tilt, both at up to 200°/sec. Axis Zipstream provides exceptional savings on bandwidth and storage requirements without compromising image quality. Ease of installation is supported by a compact and low-weight design, with both RJ45 and SFP for fiber or coax and 100–240 V AC power input.
Main Features
- -60 ℃ to 60 ℃ (-76 °F to 140 °F)
- HDTV 1080p with 32x optical zoom
- Smoke alert analytics
- Worldwide hazardous area certifications
- Zipstream and Lightfinder
General Information
Name: AXIS XPQ1785 Explosion-Proof PTZ, Stainless Steel
Category: Axis Communications, Video Surveillance, IP Cameras, PTZ Security Cameras
UPC Code: 7331021075658
Country of Origin: Sweden. Country of origin is subject to change.
Specifications
-
ADI Part Number Z4-02278001 Brand Name AXIS Communications Manufacturer Axis Communications Manufacturer Part Number 02278001 Product Model XPQ1785 Product Name AXIS XPQ1785 Product Type Explosion-protected cameras; PTZ cameras Supported Network Protocols IPv6 USGv6|NIST SP500-267 Weight 50.71lb
-
Aperture f/1.4-4.0 Connectivity Technology Wired Field of View Horizontal, Vertical Lens Type Varifocal Maximum Aperture f/1.4 Maximum Frame Rate 60fps Minimum Focal Length 4.3mm Night Vision Yes Optical Zoom 32x Video Formats H.264, MJPEG, MPEG-4
-
Image Sensor Type CMOS Wide Dynamic Range Yes
-
Ingress Protection Rating IP66, IP67, IP68
-
Image Sensor Size 1/2.8" Maximum Video Resolution 1920 x 1080
-
Maximum Operating Temperature 140°F (60°C) Minimum Operating Temperature -76°F (-60°C) Operating Humidity 1
-
Longest Shutter Speed 1 Second Minimum Illumination 0.03 lux Shortest Shutter Speed 1/66500 Second
-
Network (RJ-45) Yes
-
Focal Length 4.3-137mm Lens Included Yes Maximum Focal Length 137 mm Minimum Aperture f/4
-
Memory Card Supported Yes
-
Remote Management Yes
-
ADI Part Number Replaces Z4-01926001, Z4-02121001, Z4-02122001, Z4-02123001 Model Number Replaces 01926-001, 02122-001, 02123-001, XP40-Q1785
-
Color White Depth 11.9" Durability Dustproof, Explosionproof, Impact Resistant, Waterproof, Weatherproof Form Factor Turret Height 14.6" Width 9.4"
-
Maximum Power Consumption 150W
-
Mount Type Pole Mount, Wall Mount
-
Recording Formats Full HD Storage Type Memory Card
-
Maximum Resolution 1280 x 720
-
Certifications CISPR 32 Class A, CISPR 35, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-2, EN 61000-6-4, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), RCM AS/NZS CISPR 32 Class A Certifications & Standards ONVIF G, ONVIF S, ONVIF T Country of Origin SE Environmental Certification UL 50E Features Cross Line Detection, Day/Night, Defog, Electronic Image Stabilization, HTTPS Encryption, Motion Detection, Password Protection, PTZ, Smoke Detector, Video Management System, White Balance, Wide Dynamic Range Impact Protection Rating IK10 Indoor/Outdoor Outdoor
