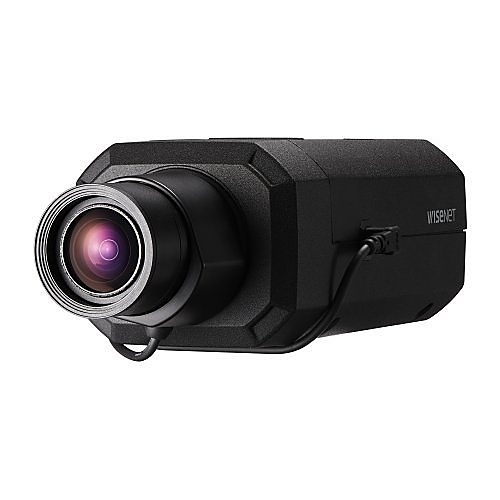

Hanwha PNB-A9091RLPH Series 4K Low-Moderate Speed LPR Box Camera with IR Illuminator and Wall Mount Bracket, 12-50mm Lens, Gray White PoE Housing
Hanwha PNB-A9091RLPH Series 4K Low-Moderate Speed LPR Box Camera with IR Illuminator and Wall Mount Bracket, 12-50mm Lens, Gray White PoE Housing
- Network camera - Helps achieve high-quality video results
- Up to 3840 x 2160 video resolution
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- Network camera - Helps achieve high-quality video results
- Up to 3840 x 2160 video resolution
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
Sign In for Dealer Pricing
Become an ADI Customer- Network camera - Helps achieve high-quality video results
- Up to 3840 x 2160 video resolution
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
Hanwha PNB-A9091RLPH Series 4K Low-Moderate Speed LPR Box Camera with IR Illuminator and Wall Mount Bracket, 12-50mm Lens, Gray White PoE Housing
PNB-A9091RLPH | SQ-A9091RLPH
Please sign in to view pricing and availability and to add to cart.
Product Overview
Hanwha Vision P series cameras feature edge-based AI analytics for intelligent object detection and attribute extraction. Reduce false alarms and increase operational efficiency during forensic review with this versatile line of cameras.
Reduce false alarms with AI-triggered events
P series cameras use AI to generate object data to identify people, faces, vehicles, license plates and more, while separating detected objects from their surroundings to reduce false alarms.
Expand your vision
BestShot gives you a snapshot of detected objects in real-time along with all captured metadata for easy identification.
Advanced AI video analytics
Utilize your security and surveillance system for more with intelligent video analytics, giving you actionable business insights and searchable metadata.
Reinforced durability
Built to stand up to the elements indoors and out, Hanwha Vision cameras are scratch-resistant, vent away condensation, and are protected from voltage surges.
Main Features
- Network camera - Helps achieve high-quality video results
- Up to 3840 x 2160 video resolution
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- 50 mm maximum focal length for dependable identification distances with better coverage
- f/1.8 maximum aperture for productive capturing according to focal length and lighting conditions
- 4.2x optical zoom for bringing the subject closer for maximum surveillance efficiency
- Up to 120 ft of night vision
- 4K recording format for exceptional video quality with maximum productivity
- Infrared night vision type for better surveillance reliability and ensure maximum productivity
- Auto camera iris automatically opens or closes the iris to provide an image of the correct exposure
General Information
Specifications
-
ADI Part Number SQ-A9091RLPH Brand Name Hanwha Vision Manufacturer Hanwha Vision Manufacturer Part Number PNB-A9091RLPH Product Model PNB-A9091RLPH Product Name 4K AI LPR Box Camera Kit with IR Product Series P Product Type Box Camera Weight 16.4 lb
-
Connectivity Technology Wired Field of View Horizontal: 30°, Vertical: 30° Lens Type Varifocal Maximum Aperture f/1.2 Maximum Frame Rate 30 fps Minimum Focal Length 12mm Night Vision Yes Night Vision Type Infrared Optical Zoom 4.2x Video Formats H.264, H.265, MJPEG
-
Image Sensor Type CMOS Night Vision Distance 120 ft Wide Dynamic Range Yes
-
Ingress Protection Rating IP66, IP67
-
Maximum Video Resolution 3840 x 2160
-
Maximum Operating Temperature 131°F Minimum Operating Temperature 14°F Operating Humidity <90% RH
-
Longest Shutter Speed 1/5 Second Minimum Illumination 0.003 lux Shortest Shutter Speed 1/12,000 Second
-
Network (RJ-45) Yes
-
Focal Length 12-50 mm Lens Included Yes Maximum Focal Length 50 mm
-
Remote Management Yes
-
Color Gray Durability Dust Resistant, Waterproof
-
Mount Type Box Mount, Desktop Mount, Rack Mount, Wall Mount
-
Recording Formats 4K Storage Type Memory Card
-
Analog Video Signal Format CVBS Maximum Resolution 1280 x 720
-
Limited Warranty 5-Year
-
Country of Origin VN Features 4K resolution, Allow/Deny list notification, Day and Night(ICR), WDR(120dB), Easy setup with wizard for optimal plate identification, Efficient Smart Search and Dashboard view (LP,Country/State, brand, model, color), H.265, H.264, MJPEG codec, WiseStreamâ…¡, License Plate Recognition (LPR), Make/Model/Color Recognition, Smart Search (LP, Country, brand, model, color), Wisenet Road AI application (Pre-installed), supports USA, Canada, Mexico, Brazil, Uruguay, Paraguay, Argentina, Colombia, Chile Indoor/Outdoor Indoor, Outdoor Package Contents - 1 x PNB-A9091RLPH 4K AI LPR Box Camera Kit with IR

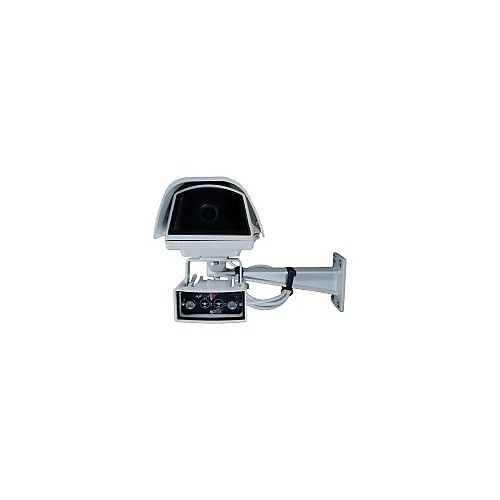

- 1 x PoE+ Enclosure
- 1 x Wall Mount Bracket
- 1 x IR Illuminator
- 1 x 12-50mm 4K Lens
