Hanwha PNM-7082RVD/KEX Series x 2MP Outdoor IR Multi-Directional Dome IP Camera, 3-6mm Motorized Varifocal Lens, White, TAA Compliant
Hanwha PNM-7082RVD/KEX Series x 2MP Outdoor IR Multi-Directional Dome IP Camera, 3-6mm Motorized Varifocal Lens, White, TAA Compliant
- WiseNR, WiseStreamⅡ, extremeWDR (150 dB)
- Maximum 1920x1080 resolution
- Maximum 30 fps/25 fps at 2MP
- WiseNR, WiseStreamⅡ, extremeWDR (150 dB)
- Maximum 1920x1080 resolution
- Maximum 30 fps/25 fps at 2MP
Sign In for Dealer Pricing
Become an ADI Customer- WiseNR, WiseStreamⅡ, extremeWDR (150 dB)
- Maximum 1920x1080 resolution
- Maximum 30 fps/25 fps at 2MP
Hanwha PNM-7082RVD/KEX Series x 2MP Outdoor IR Multi-Directional Dome IP Camera, 3-6mm Motorized Varifocal Lens, White, TAA Compliant
PNM-7082RVD/KEX | SQ-782RVDKEX
Please sign in to view pricing and availability and to add to cart.
Product Overview

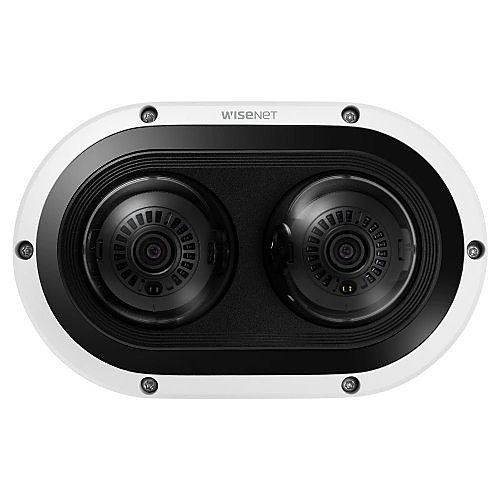

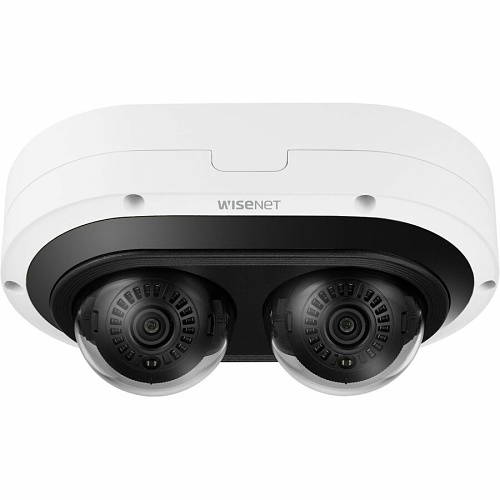

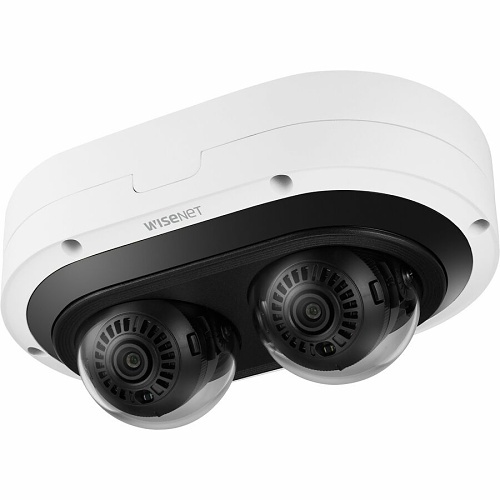

The PNM-7082RVD is an outdoor vandal-rated network camera featuring 2 Channels, with IR in a dome camera form factor. Featuring 2MP X 2 sensors, each at 30fps with a 3~6mm (2x) (107°~56.3°) motorized varifocal lens, Triple codec (H.265/H.264/MJPEG). The IR viewable length is 25m (82ft), and features a USB port for easy installation, Day & Night (ICR), extremeWDR (120dB), DIS, & Handover. License-free intelligent video analytics IVA (Virtual line/direction, Enter/Exit, Loitering, Intrusion, Defocus detection, Motion detection, Appear/Disappear, Tampering, Audio detection, Sound classification (with optional I/O Box). FIPS 140-2, micro SD card 512GB, IP66, NEMA4X, IK10. Operating temperature: -40°C~+55°C(-40°F ~ +131°F), Power: PoE+, Metal shielded RJ-45, Hard-coated dome bubble
Main Features
- WiseNR, WiseStreamⅡ, extremeWDR (150 dB)
- Maximum 1920x1080 resolution
- Maximum 30 fps/25 fps at 2MP
- Color 0.035lux(F2.2, 1/30sec, 30IRE), 0 Lux (IR LED on)
- 3~6mm(2x) Motorized varifocal, 75° tilt angle
- IR viewable length 82'
- TPM 2.0(FIPS 140-2 Certified)
- IP66, IK10, NEMA4X
General Information
Specifications
-
ADI Part Number SQ-782RVDKEX Brand Name Hanwha Vision Manufacturer Hanwha Vision Manufacturer Part Number PNM-7082RVD/KEX Product Model PNM-7082RVD/KEX Product Name 2MP X 2 IR Outdoor Dome Camera Product Series P Product Type Dome Camera Weight 2.93 lb
-
Connectivity Technology Wired Effective Camera Resolution 2MP Field of View H: 107-56, V: 57-31, D: 126-64 Lens Type Varifocal Maximum Aperture f/2.2 Maximum Frame Rate 30 fps Minimum Focal Length 3mm Night Vision Yes Night Vision Type Infrared Optical Zoom 2x Video Formats H.264, H.265, MJPEG
-
Image Sensor Type CMOS Night Vision Distance 82.02 ft Wide Dynamic Range Yes
-
Ingress Protection Rating IP66, IP67 TAA Compliant Yes
-
Maximum Video Resolution 1920 x 1080 Number of Sensors 2
-
Maximum Operating Temperature 131°F Minimum Operating Temperature -40°F Operating Humidity <95% RH (Non Condensing)
-
Longest Shutter Speed 2 Second Minimum Illumination 0.0035 lux Shortest Shutter Speed 1/12,000 Second
-
Network (RJ-45) Yes
-
Focal Length 3-6 mm Lens Included Yes Maximum Focal Length 3-6 mm Minimum Aperture f/3.1
-
Remote Management Yes
-
Color White Depth 5.31" Durability Dustproof, Impact Resistant, Waterproof Form Factor Dome Height 3.67" Width 8.46"
-
Mount Type Desktop Mount, Rack Mount, Wall Mount
-
Recording Formats Full HD Storage Type Memory Card
-
Maximum Resolution 1280 x 720
-
Country of Origin KR Features Back Light Compensation (BLC), Day/Night, Defog, Digital Noise Reduction, Highlight Compensation (HLC), Motion Detection, Multi-view Stream, Noise Reduction, Privacy Masking, Removable IR Cut-off Filter, White Balance, Wide Dynamic Range Impact Protection Rating IK10 Indoor/Outdoor Outdoor
