Product Overview
Q series cameras are affordable products equipped with features essential to the creation of a safe and secure environment. Being able to deliver sharp and clear images in 5MP & 2MP makes it an ideal product in securing small to medium sized spaces such as retail or banking spaces and offices.
Q series cameras are equipped with a wide range of Intelligent Video Analytics features, helping users detect different types of incidents and have full situational awareness of their facility.
General Information

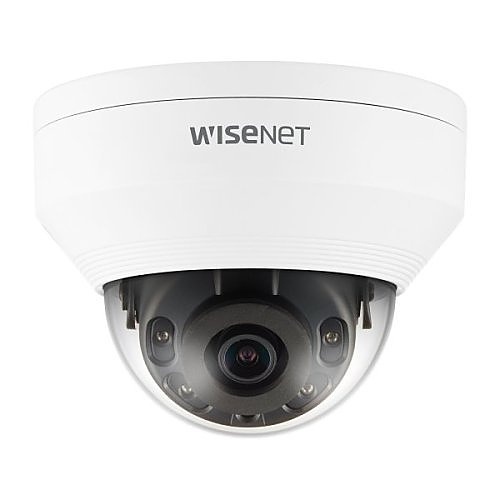

Name : Hanwha QNV-7012R Q-Series 4MP IR Vandal IP Dome Camera, 2.8mm Lens, White , Hanwha Vision
Category : Dome Cameras
UPC Code : 8801089202574
Country of Origin : Vietnam. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : SQ-QNV7012R
Brand Name : Wisenet
Connectivity Technology : Wired
Manufacturer : Hanwha Group
Manufacturer Part Number : QNV-7012R
NDAA Compliant : Yes
Product Model : QNV-7012R
Product Name : 4MP IR Vandal Dome Camera
Product Series : Q
Product Type : Network Camera
Weight (Approximate) (g) : 510
Technical Information
Effective Camera Resolution : 4MP
Field of View : H : 107.5, V : 59.7, D : 122.0
HD Recording : Yes
Lens Type : Fixed
Maximum Aperture : f/2
Maximum Focal Length (mm) : 2.8
Maximum Frame Rate : 30 fps
Night Vision : Yes
Night Vision Type : Infrared
Video Formats : H.264, H.265, MJPEG
Camera
Image Sensor Type : CMOS
Night Vision Distance : 65.62 ft
Night Vision Distance (mm) : 20000
Wide Dynamic Range : Yes
Display & Graphics
Color Supported : Color
Effective Camera Resolution (Pixel) : 4000000
Maximum Video Resolution : 2560 x 1440
Environmental Conditions
Maximum Operating Temperature : 131°F (55°C)
Maximum Operating Temperature (°F) : 131
Minimum Operating Temperature : -40°F (-40°C)
Minimum Operating Temperature (°F) : -40
Operating Humidity : 95%
Exposure
Longest Shutter Speed : 1/5 Second
Shortest Shutter Speed : 1/12000 Second
Interfaces/Ports
Network (RJ-45) : Yes
Lens
Focal Length : 2.8 mm
Lens Included : Yes
Maximum Focal Length : 2.8 mm
Network & Communication
Remote Management : Yes
Physical Characteristics
Diameter (mm) : 120.3
Form Factor : Dome
Weight (Approximate) : 1.12 lb
Product Information
Diameter : 4.7"
Mount Type : Desk Mountable, Rack Mountable, Wall Mountable
Storage
Storage Type : Memory Card
Video
Analog Video Signal Format : CVBS
Maximum Frame Rate (fps) : 30
Miscellaneous
Features : Automatic White Balance, Back Light Compensation (BLC), Day/Night, Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, SD Card Local Storage, Tamper Detection, Wide Dynamic Range
Impact Protection Rating : IK10
Ingress Protection Rating : IP66
