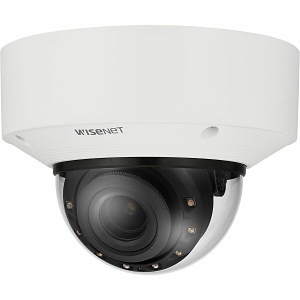

Hanwha XNV-C7083R/KEX Series 4MP Outdoor IR Vandal Dome IP Camera, 2.8-12mm Motorized Varifocal Lens, White, TAA Compliant
XNV-C7083R/KEX | SQ-XV783RKEX
Please sign in to view pricing and availability and to add to cart.
Product Overview
The new X series cameras utilize AI to detect and classify people, vehicles, faces, license plates and more in real-time. With a range of available resolutions from 2MP to 4K, the cameras’ deep-learning algorithms can reliably identify multiple distinct objects. Reduce false alarms due to none interesting motion, like wind-blown trees, shadows, or animals. Analytics become a reliable second pair of eyes to operators helping them know where to look for important real-time events, while making post-event forensic searches highly efficient.
Main Features
- 4MP resolution
- 2.8~10 mm (3.6x) motorized varifocal
- Color: 0.038 Lux (F1.4, 1/30sec, 30IRE), 0 Lux (IR LED on)
- Maximum 60 fps (H.265/H.264)
- WiseIR: IR viewable length 40 m (131.23 ft)
- Day & Night (ICR), extremeWDR (120 dB)
- Hard-coated dome bubble
- WiseNR(Based on AI engine), WiseStream III(Based on AI engine)
- Analytics events based on AI engine (NPU) : Object detection (Person/Face/Vehicle - car, truck, bus, bicycle, motorcycle/License plate)
- IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion)
General Information
Specifications
-
ADI Part Number SQ-XV783RKEX Brand Name Hanwha Vision Manufacturer Hanwha Vision Manufacturer Part Number XNV-C7083R/KEX Product Model XNV-C7083R/KEX Product Name 4MP AI IR Vandal Dome Product Series X Product Type Dome Camera Weight 3.20 lb
-
Connectivity Technology Wired Effective Camera Resolution 4MP Field of View H: 110°-30°, V: 61°-17°, D: 132°-35° Lens Type DC Auto Iris Maximum Aperture f/1.4 Maximum Frame Rate 60 fps Minimum Focal Length 2.8mm Night Vision Yes Night Vision Type Infrared Optical Zoom 3.6x Video Formats H.264, H.264H, H.264M, H.265, H.265H, H.265M, MJPEG
-
Image Sensor Type CMOS Night Vision Distance 131.23 ft Wide Dynamic Range Yes
-
Ingress Protection Rating IP66, IP67 TAA Compliant Yes
-
Maximum Video Resolution 2592 x 1520
-
Maximum Operating Temperature 131°F Minimum Operating Temperature -40°F Operating Humidity 100% RH (Condensing)
-
Longest Shutter Speed 1/12000 Second Minimum Illumination 0.0076 lux Shortest Shutter Speed 2 Second
-
Network (RJ-45) Yes
-
Focal Length 2.8-10 mm Lens Included Yes Maximum Focal Length 10 mm Minimum Aperture f/3
-
Remote Management Yes
-
Color White Durability Dustproof, Impact Resistant, Vandal Resistant, Waterproof Form Factor Dome
-
Input Voltage 12V DC
-
Diameter 6.3" Mount Type Desktop Mount, Rack Mount, Wall Mount
-
Storage Type Memory Card
-
Maximum Resolution 1280 x 720
-
Limited Warranty 3-Year
-
Country of Origin KR Features Audio Detection, Back Light Compensation (BLC), Day/Night, Defog, Digital Noise Reduction, Gain Control, Highlight Compensation (HLC), Motion Detection, Privacy Masking, White Balance, Wide Dynamic Range Impact Protection Rating IK10 Indoor/Outdoor Outdoor
