Product Overview

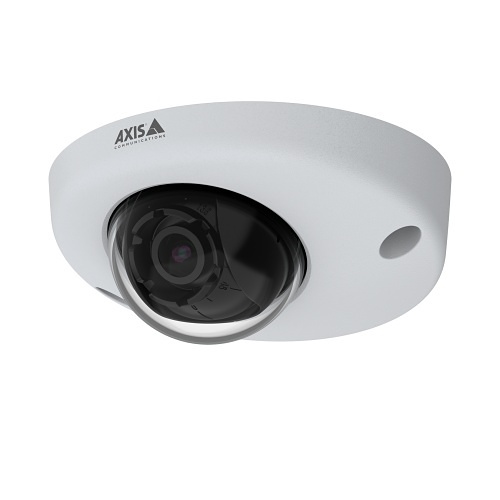

Specifically designed for onboard surveillance, AXIS P3925-R complies with all relevant transportation industry regulations including EN50155, EN45545, and NFPA 130. Featuring Axis Lightfinder and Axis Forensic WDR, it delivers true colors and great detail in challenging light or near darkness. Enclosed in an IK10-, IP66-, IP67-rated metal casing, this robust, vandal-resistant camera offers extended capabilities for analytics. Furthermore, enhanced security features prevent unauthorized access and safeguard your system.
- Vandal-resistant, metal casing
- Complies with EN50155, EN45545, and NFPA 130
- Lightfinder and Forensic WDR
- Electronic image stabilization
- Enhanced security features
General Information
Name : AXIS P3925-R P39 Series 2MP Onboard WDR IP Camera, 2.8mm Lens, White , AXIS Communications
Category : Mobile & Vehicle Dash Cameras
UPC Code : 7331021069275
Country of Origin : Japan. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : Z4-01933001
Brand Name : AXIS Communications
Connectivity Technology : Wired
Manufacturer : Axis Communications
Manufacturer Part Number : 01933-001
NDAA Compliant : yes
Product Model : P3925-R
Product Name : P3925-R Network Camera
Product Series : P39
Product Type : Network Camera
Weight (Approximate) (g) : 410
Technical Information
Effective Camera Resolution : 2MP
Field of View : Horizontal field of view: 110° Vertical field of view: 62°
HD Recording : Yes
Lens Mount Type : M12 Mount
Lens Type : Fixed
Maximum Aperture : f/1.6
Maximum Focal Length (mm) : 2.8
Maximum Frame Rate : 45 fps
Camera
Maximum Illumination (lux) : 1.6
Wide Dynamic Range : Yes
Display & Graphics
Color Supported : Color
Maximum Illumination : 1.6 lux
Maximum Video Resolution : 1280 x 960
Minimum Illumination (lux) : 0.06
Environmental Conditions
Maximum Operating Temperature : 131°F (55°C)
Maximum Operating Temperature (°F) : 131
Minimum Operating Temperature : -40°F (-40°C)
Minimum Operating Temperature (°F) : -40
Operating Humidity : 95%
Exposure
Longest Shutter Speed : 2 Second
Minimum Illumination : 0.1 lux
Shortest Shutter Speed : 1/33500 Second
Interfaces/Ports
Network (RJ-45) : yes
Lens
Focal Length : 2.8 mm
Lens Included : Yes
Maximum Focal Length : 2.8 mm
Physical Characteristics
Color : White
Diameter (mm) : 110
Durability : Dust Proof, Vandal resistant, Water Proof
Form Factor : Dome
Height : 1.9"
Height (mm) : 49.4
Weight (Approximate) : 14.46 oz
Product Information
Diameter : 4.3"
Mount Type : Pendant Mount, Vehicle Mount, Wall Mount
Storage
Recording Formats : HD
Video
Maximum Frame Rate (fps) : 45
Warranty
Limited Warranty : 5 year
Miscellaneous
Features : Day/Night, Defog, Electronic Image Stabilization, HTTPS Encryption, Motion detection, Password Protection, Privacy Masking, PTZ, SD Card Local Storage, Shock Detection, Tampering Alarm
Impact Protection Rating : IK10
Indoor/Outdoor : Indoor, outdoor
Ingress Protection Rating : IP66, IP67
Package Contents : <ul> <li>P3925-R Network Camera</li> <li>Installation Guide</li> <li>Windows Decoder 1-User License,</li> <li>Drill Hole Template</li> <li>Lens Tool</li> <li>Resistorx L-Key</li> </ul>
TAA Compliant : yes
