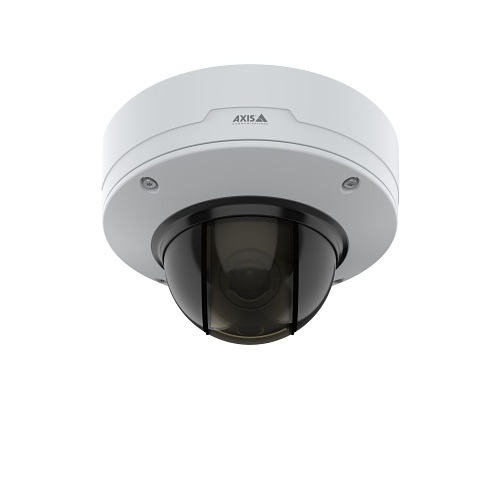

AXIS Q3536-LVE Q35 Series 4MP Advanced Dome IP Camera with Deep Learning, 29mm Varifocal Lens, White
Q3536-LVE|Z4-02224001
AXIS Q3536-LVE Q35 Series 4MP Advanced Dome IP Camera with Deep Learning, 29mm Varifocal Lens, White
Q3536-LVE|Z4-02224001
Key Features
- Analytics with deep learning
- Available with wide or tele lens
- IR-shielded dome to prevent reflections
Key Features
- Analytics with deep learning
- Available with wide or tele lens
- IR-shielded dome to prevent reflections
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Analytics with deep learning
- Available with wide or tele lens
- IR-shielded dome to prevent reflections
Axis Communications
AXIS Q3536-LVE Q35 Series 4MP Advanced Dome IP Camera with Deep Learning, 29mm Varifocal Lens, White
Q3536-LVE | Z4-02224001
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
With 4 MP resolution, Lightfinder 2.0, Forensic WDR, and OptimizedIR, AXIS Q3536-LVE delivers outstanding image quality even in the harshest weather and environments. The IR-shielded dome prevents IR reflections ensuring consistently clear, sharp video. Built on ARTPEC-8, it offers advanced features and powerful applications based on deep learning. For instance, AXIS Object Analytics comes preinstalled offering highly nuanced object classification. Enclosed in a metal casing, this robust camera features redundant power, sensors for intrusion and shock detection, and built-in cybersecurity features such as Axis Edge Vault and a FIPS 140-2 level 2 certified Trusted Platform Module (TPM).
Main Features
- Analytics with deep learning
- Available with wide or tele lens
- IR-shielded dome to prevent reflections
- Metal casing and built-in cybersecurity features
- Outstanding image quality in 4 MP
General Information
Name: AXIS Q3536-LVE Q35 Series 4MP Advanced Dome IP Camera with Deep Learning, 29mm Varifocal Lens, White
Category: Axis Communications, Video Surveillance, IP Cameras, Dome Cameras
UPC Code: 7331021075054
Country of Origin: Poland. Country of origin is subject to change.
Specifications
-
ADI Part Number Z4-02224001 Brand Name AXIS Communications Manufacturer Axis Communications Manufacturer Part Number 02224-001 Product Line Q Product Model Q3536-LVE Product Name AXIS Q3536-LVE 29MM DOME CAMERA Product Series Q35 Product Type Fixed dome cameras Supported Network Protocols IPv6 USGv6|NIST SP500-267
-
Aperture f/1.7 Effective Camera Resolution 4MP Field of View Horizontal, Vertical Lens Type Varifocal Maximum Frame Rate 60 fps Minimum Focal Length 29mm Night Vision Yes Optical Zoom 2.6x Video Formats H.264, H.265
-
Image Sensor Type CMOS Wide Dynamic Range Yes
-
Ingress Protection Rating IP66, IP6K9K TAA Compliant Yes
-
Image Sensor Size 1/1.8" Maximum Video Resolution 2688 x 1512
-
Operating Temperature (T-T) -50-55°C
-
Minimum Illumination 0 lux
-
Focal Length 11.3-29.4mm Lens Included Yes Maximum Focal Length 29 mm
-
Memory Card Supported Yes
-
Remote Management Yes
-
ADI Part Number Replaces Z4-01039001, Z4-01041001, Z4-01044001, Z4-01046001 Model Number Replaces 01039-001, 01041-001, 01044-001, 01046-001, Q3515-LV
-
Color White Durability Vandal Resistant
-
Power over Ethernet (PoE) Yes
-
Mount Type Bracket Mount, Conduit Mount, Gang Box Mount, Junction Box Mount
-
Certifications CISPR 32 Class A, CISPR 35, EAC, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A Certifications & Standards ONVIF G, ONVIF M, ONVIF S, ONVIF T Country of Origin PL Environmental Certification IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10+ (50J), ISO 20653 IP6K9K, NEMA 250 Type 4X Features Built-in Infrared Illuminator, Day/Night Impact Protection Rating IK10+ Indoor/Outdoor Outdoor
