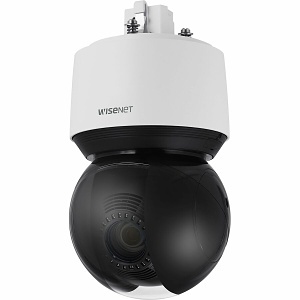

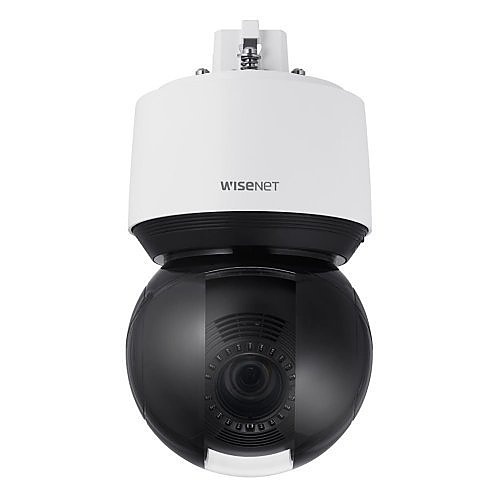

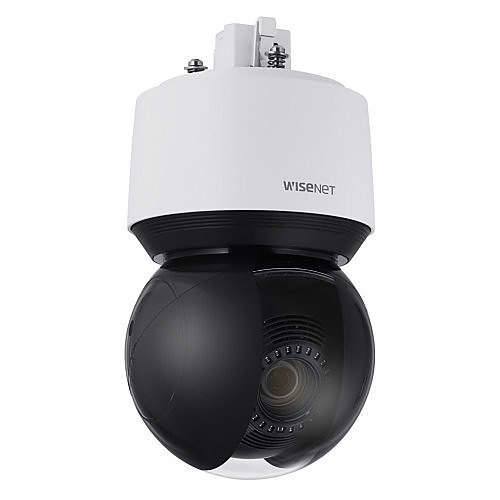

Product Overview
PTZ PLUS supports remarkable performance with new in-house developed 4K 25x zoom lens. Experience powerful new PTZ’s performance. PTZ PLUS supports object (person or vehicle) auto tracking based on AI deep-learning algorithm. And by simply right-clicking an object on a screen, it locks the object and tracks the targeted object. (target-lock tracking). PTZ PLUS allows for monitoring in complete darkness up to 200meters with Wise IR. It optimizes amount of IR at every zoom ratio.
General Information
Name : Hanwha XNP-9250R/KAP Series 4K IR PTZ Plus IP Camera, 25x Optical Zoom Lens, Black/White, TAA Compliant , Hanwha Vision
Category : PTZ Security Cameras
UPC Code : 8801089200006
Country of Origin : Korea. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : SQ-XP925RKAP
Brand Name : Hanwha Vision
Manufacturer : Hanwha Group
Manufacturer Part Number : XNP-9250R/KAP
Product Model : XNP-9250R
Product Name : 4K, 25x, IR PTZ camera
Product Series : X
Product Type : Network Camera
Weight (Approximate) (g) : 3200
Technical Information
Field of View : H: 57.42°(Wide)~2.71°(Tele) / V: 33.54°(Wide)~1.55°(Tele)
HD Recording : Yes
Lens Type : Varifocal
Maximum Aperture : f/1.6
Maximum Focal Length (mm) : 125
Maximum Frame Rate : 30 fps
Minimum Focal Length : 5 mm
Night Vision : Yes
Night Vision Type : Infrared
Optical Zoom : 25x
Camera
Night Vision Distance : 656.17 ft
Night Vision Distance (mm) : 200000
Display & Graphics
Color Supported : Color
Maximum Video Resolution : 3840 x 2160
Environmental Conditions
Maximum Operating Temperature : 131°F (55°C)
Maximum Operating Temperature (°F) : 131
Minimum Operating Temperature : -40°F (-40°C)
Minimum Operating Temperature (°F) : -40
Operating Humidity : 95%
Exposure
Longest Shutter Speed : 2 Second
Shortest Shutter Speed : 1/12000 Second
Interfaces/Ports
Network (RJ-45) : yes
Lens
Lens Included : Yes
Maximum Focal Length : 125 mm
Minimum Aperture : f/3.73
Physical Characteristics
Color : Black
Diameter (mm) : 158
Weight (Approximate) : 7.05 lb
Product Information
Diameter : 6.2"
Mount Type : Desk Mount, Rack Mount, Wall Mount
Projection Lens
Minimum Focal Length (mm) : 5
Storage
Recording Formats : 4K
Storage Type : Memory Card
Video
Maximum Frame Rate (fps) : 30
Warranty
Limited Warranty : 3 year
Miscellaneous
Features : Audio Detection, Back Light Compensation (BLC), Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Gain Control, Motion detection, Privacy Masking, PTZ, White Balance, Wide Dynamic Range
Impact Protection Rating : IK10
Ingress Protection Rating : IP66
TAA Compliant : yes
