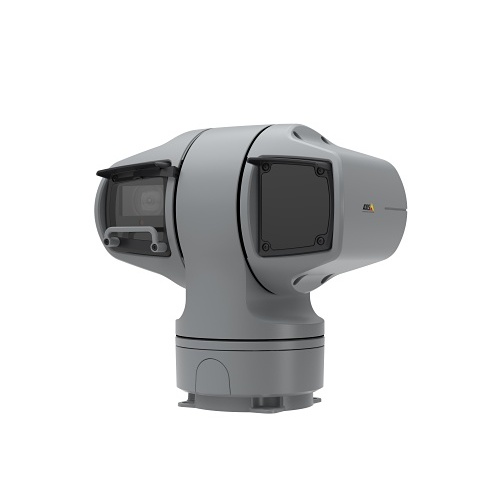

AXIS Q6225-LE 1080p HDTV Outdoor PTZ IP Camera, 6.91-214.69mm Lens, Grey (Replaces 02517-001 and 01442-004)
Q6225-LE|Z4-02317004
AXIS Q6225-LE 1080p HDTV Outdoor PTZ IP Camera, 6.91-214.69mm Lens, Grey (Replaces 02517-001 and 01442-004)
Q6225-LE|Z4-02317004
Key Features
- 1/2" sensor and long-range OptimizedIR
- AXIS Object Analytics preinstalled
- Electronic image stabilization
Key Features
- 1/2" sensor and long-range OptimizedIR
- AXIS Object Analytics preinstalled
- Electronic image stabilization
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- 1/2" sensor and long-range OptimizedIR
- AXIS Object Analytics preinstalled
- Electronic image stabilization

Axis Communications
AXIS Q6225-LE 1080p HDTV Outdoor PTZ IP Camera, 6.91-214.69mm Lens, Grey (Replaces 02517-001 and 01442-004)
Q6225-LE | Z4-02317004
Please sign in to view pricing and availability and to add to cart.
Accessories
Overview
Specifications
Documents
Product Overview
This heavy-duty PTZ camera meets the MIL-STD-810G standard, ensuring reliable operation in the toughest conditions. It offers HDTV 1080p resolution and a 1/2" sensor with 31x optical zoom. Featuring Lightfinder, Forensic WDR, and OptimizedIR it ensures sharp, clear images in any light conditions. This vandal-resistant, IK10-rated camera is resistant to both impacts and harsh weather conditions including wind speed up to 245 km/h (150 mph). It comes with built-in analytics preinstalled to alert you when needed. Additionally, Zipstream with H.264/ H.265 significantly reduces bandwidth and storage requirements without compromising image quality.
Main Features
- 1/2" sensor and long-range OptimizedIR
- AXIS Object Analytics preinstalled
- Electronic image stabilization
- HDTV 1080p and 31x optical zoom
- MIL-STD-810G and NEMA TS 2 compliant
General Information
Name: AXIS Q6225-LE 1080p HDTV Outdoor PTZ IP Camera, 6.91-214.69mm Lens, Grey (Replaces 02517-001 and 01442-004)
Category: Axis Communications, Video Surveillance, IP Cameras, PTZ Security Cameras
UPC Code: 7331021075863
Country of Origin: Poland. Country of origin is subject to change.
Specifications
-
ADI Part Number Z4-02317004 Brand Name AXIS Communications Manufacturer Axis Communications Manufacturer Part Number 02317-004 Product Line Q Product Model Q6225-LE Product Name AXIS Q6225-LE 60 Hz US Product Series Q62 Product Type PTZ cameras Supported Network Protocols IPv6 USGv6
-
Aperture f/1.36-4.6 Connectivity Technology Wired Effective Camera Resolution 2MP Field of View Horizontal, Vertical Lens Type Varifocal Maximum Frame Rate 60 fps Night Vision Yes Night Vision Type Infrared Optical Zoom 30x Video Formats H.264, H.265
-
Image Sensor Type CMOS Night Vision Distance 1312.34 ft Wide Dynamic Range Yes
-
Ingress Protection Rating IP66, IP68
-
Image Sensor Size 1/2" Maximum Video Resolution 1920 x 1080
-
Operating Temperature (T-T) -50-55°C
-
Minimum Illumination 0.001 lux
-
Network (RJ-45) Yes
-
Focal Length 6.91-214.69mm
-
Memory Card Supported Yes
-
Remote Management Yes
-
ADI Part Number Replaces Z4-01442004, Z4-01442018, Z4-02517001 Model Number Replaces 01442-004, 01442-018, 02517-001
-
Color Gray Durability Vandal Resistant Form Factor PTZ Height 12.3"
-
Maximum Power Consumption 71W Power over Ethernet (PoE) Yes
-
Mount Type Bracket Mount
-
Recording Formats Full HD
-
Maximum Resolution 1280 x 720
-
Certifications CISPR 32 Class A, CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A Certifications & Standards ONVIF G, ONVIF M, ONVIF S, ONVIF T Country of Origin PL Environmental Certification IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP68, IEC/EN 62262 IK10, ISO 12944-6 C5, ISO 21207 (Method B), MIL-STD-810G (Method 500.5), MIL-STD-810G (Method 501.5), MIL-STD-810G (Method 502.5), MIL-STD-810G (Method 503.5), MIL-STD-810G (Method 505.5), MIL-STD-810G (Method 506.5), MIL-STD-810G (Method 507.5), MIL-STD-810G (Method 509.5), MIL-STD-810G (Method 510.5), MIL-STD-810G (Method 521.3), MIL-STD-810H (Method 500.6), MIL-STD-810H (Method 501.7), MIL-STD-810H (Method 502.7), MIL-STD-810H (Method 506.6), MIL-STD-810H (Method 509.7), MIL-STD-810H (Method 521.4), NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9) Features Auto Gain Control, Day/Night, PTZ, Wiper Impact Protection Rating IK10 Indoor/Outdoor Outdoor
