Digital Watchdog DW-BJRR2Y320T Video Surveillance Server

DW-BJRR2Y320T|6K-BJRR2Y320
Shop all Digital Watchdog

Digital Watchdog DW-BJRR2Y320T Video Surveillance Server

DW-BJRR2Y320T|6K-BJRR2Y320
Key Features
What's Included
  • Supports all ONVIF conformant IP cameras
  • Storage options 380-520TB raw internal storage
  • Record and manage single- and multi-sensor IP cameras of any resolution up to 600Mbps throughput
Key Features
What's Included
  • Supports all ONVIF conformant IP cameras
  • Storage options 380-520TB raw internal storage
  • Record and manage single- and multi-sensor IP cameras of any resolution up to 600Mbps throughput

Sign In for Dealer Pricing

Become an ADI Customer
Key Features
What's Included
  • Supports all ONVIF conformant IP cameras
  • Storage options 380-520TB raw internal storage
  • Record and manage single- and multi-sensor IP cameras of any resolution up to 600Mbps throughput
Digital Watchdog

Digital Watchdog DW-BJRR2Y320T Video Surveillance Server

DW-BJRR2Y320T | 6K-BJRR2Y320

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

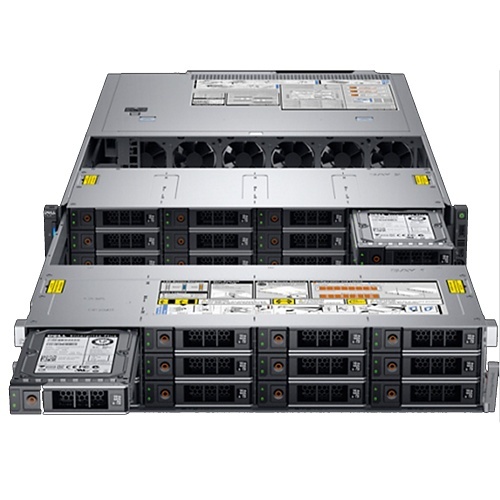

This dual processor Blackjack Rack server is the ultimate solution for recording multiple IP cameras of any resolution at up to 600Mbps throughput. The server is UL listed and includes Windows 10 IoT, Windows Server 2019, or Linux Ubuntu OS on a separate mirrored 240GB SSD. The 2U rack-mountable hardware features dual Intel Xeon processors, 32GB memory, up to four (4) 1GB and 10GB network cards and a dual power supply. The Blackjack Rack server comes preloaded with DW Spectrum IPVMS and eight recording licenses, up to 520TB of raw internal storage with RAID5 and RAID6 options and removable hot-swappable drives.

Main Features

  • Supports all ONVIF conformant IP cameras
  • Storage options 380-520TB raw internal storage
  • Record and manage single- and multi-sensor IP cameras of any resolution up to 600Mbps throughput
  • Hot Swappable HDDs
  • OS RAID 1, Data RAID5, 6 options
  • Redundant power supply
  • 2x 1GB Base-T Ethernet Ports, 2x 10GB SFP+ Fiber
  • Windows 10 IoT, Ubuntu Linux, Windows Server 2019 OS options on separate SSD
  • Dedicated RAID controller

General Information

Name: Digital Watchdog DW-BJRR2Y320T Video Surveillance Server
Category: Digital Watchdog, Video Surveillance, Security Storage & Servers, Video Surveillance Servers
UPC Code: 812226037834
Country of Origin: . Country of origin is subject to change.
