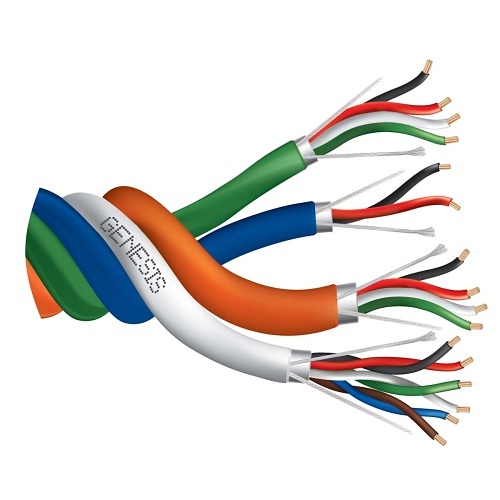

Genesis 22955099 22/6 Stranded Shielded + 22/4 Stranded Shielded + 22/2 Stranded Shielded + 18/4 Stranded Shielded Profusion Access Control Cable, Riser, CMR, FT4, 500' (152.4 m) Reel, Unjacketed
22955099|WG-22955099
Genesis 22955099 22/6 Stranded Shielded + 22/4 Stranded Shielded + 22/2 Stranded Shielded + 18/4 Stranded Shielded Profusion Access Control Cable, Riser, CMR, FT4, 500' (152.4 m) Reel, Unjacketed
22955099|WG-22955099
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- All-components shielded for extra protection in noisy environments
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- All-components shielded for extra protection in noisy environments
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- All-components shielded for extra protection in noisy environments

Genesis
Genesis 22955099 22/6 Stranded Shielded + 22/4 Stranded Shielded + 22/2 Stranded Shielded + 18/4 Stranded Shielded Profusion Access Control Cable, Riser, CMR, FT4, 500' (152.4 m) Reel, Unjacketed
22955099 | WG-22955099
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Genesis Access Control Cables simplify and expedite wiring of access points by combining individual lock power, door contact, card reader, and request-to-exit cables into a single, easy-to-pull bundle.
Main Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- All-components shielded for extra protection in noisy environments
- PVC jacket
- Durable rip cord for efficient jacket stripping and removal
- Countdown Length Markings for easy tracking of usage and remaining cable
- Rated for 300 Volts
- Rated for -20 °C to 75 °C
- Sunlight Resistant (UV) Rated
- REACH/RoHS Compliant
General Information
Name: Genesis 22955099 22/6 Stranded Shielded + 22/4 Stranded Shielded + 22/2 Stranded Shielded + 18/4 Stranded Shielded Profusion Access Control Cable, Riser, CMR, FT4, 500' (152.4 m) Reel, Unjacketed
Category: Genesis, Wire & Cable, Security & Access Control Cables, Composite Cables
UPC Code: 886618204487
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number WG-22955099 Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 22955099 Packaged Quantity 1 Product Line Profusion Access Control Cable Product Model 22955099 Product Name 22955099 - Riser Profusion Access Control, Unjacketed, 500 FT. Reel Product Type Access & Security Cable Weight 39.70 lb
-
American Wire Gauge 18AWG, 22AWG Cable Rating Riser Cable Type Composite Conductor Count 16 Conductor Material Bare Copper Connector on First End Bare Wire Device Supported Access Control Device Jacket Material PVC Jacket Type FT4, Riser Number of Conductors 2|4|6 Shielding Yes Solid or Stranded Stranded
-
TAA Compliant Yes
-
Cable Length 500' Insulation Material PP Material Bare Copper Package Type Reel
-
Limited Warranty 3-Year
-
Country of Origin US Environmental Certification RoHS Environmentally Friendly Yes Features Stranded Indoor/Outdoor Indoor
