Genesis 32061109 22/6 Stranded Shielded Plenum Cable, CL3P, FPLP, CMP, FT6, 1000' (304.8 m), REELEX Pull Box, Gray
Brand: Genesis
ADI #:WG-32061109
Model #: 32061109
Name: Genesis 32061109 22/6 Stranded Shielded Plenum Cable, CL3P, FPLP, CMP, FT6, 1000' (304.8 m), REELEX Pull Box, Gray
- Stranded bare copper conductors
- Overall foil shield
- Rated for plenum, riser, and general purpose indoor installation
Product Overview

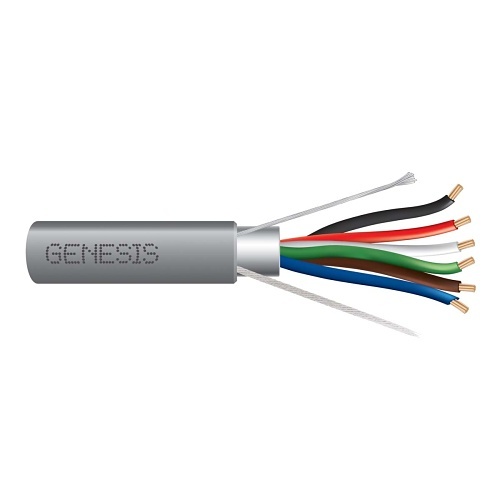

This Genesis® cable features 6 stranded 22 AWG copper conductors, an overall foil shield with a drain wire, and a plenum rating. Choose this cable for a dependable connection for security, controls, audio, and other low-voltage applications.
General Information
Name : Genesis 32061109 22/6 Stranded Shielded Plenum Cable, CL3P, FPLP, CMP, FT6, 1000' (304.8 m), REELEX Pull Box, Gray , GenesisCategory : Stranded Plenum Shielded Cables
UPC Code : 619172022453
Country of Origin : United States. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : WG-32061109
Brand Name : Genesis
Manufacturer : Genesis Cable
Manufacturer Part Number : 32061109
Product Model : 32061109
Product Name : 32061109 Control Cable
Product Type : Control Cable
Weight (Approximate) (g) : 10614.061
Technical Information
American Wire Gauge : 22 AWG
Cable Listing : CL3P, CMP, FPLP, FT6
Cable Type : Stranded Plenum Shielded Cables
Connector on First End : Bare Wire
Connector on Second End : Bare Wire
Device Supported : Burglar Alarm, Intercom, Phone, Speaker
Jacket Type : CL3P, CMP, FPLP, FT6, Plenum
Number of Conductors : 6
Shielding : Yes
Solid or Stranded : Stranded
Physical Characteristics
Cable Length : 1000'
Cable Length (mm) : 304800
Color : Gray
Material : Polyvinyl Chloride (PVC) - Jacket
Package Type : Pull Box
Weight (Approximate) : 23.40 lb
Miscellaneous
Country of Origin : United States
Environmental Certification : RoHS
Environmentally Friendly : Yes
Features : Stranded
