Genesis 31065512 22/6 Stranded Unshielded Cable, Plenum, CMP, FT6, 500' (152.4 m) Pull Box, Natural
31065512|WG-31065512
Genesis 31065512 22/6 Stranded Unshielded Cable, Plenum, CMP, FT6, 500' (152.4 m) Pull Box, Natural
31065512|WG-31065512
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Plenum PVC jacket
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Plenum PVC jacket
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Plenum PVC jacket

Genesis
Genesis 31065512 22/6 Stranded Unshielded Cable, Plenum, CMP, FT6, 500' (152.4 m) Pull Box, Natural
31065512 | WG-31065512
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

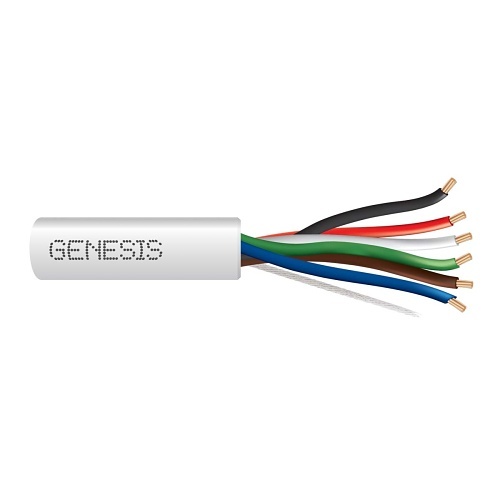

Genesis Unshielded Multiconductor Cables offer a versatile solution for various signal and limited-power transmission applications.
Main Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Plenum PVC jacket
- Durable rip cord for efficient jacket stripping and removal
- Countdown Length Markings for easy tracking of usage and remaining cable
- Rated for 300 Volts
- Rated for -20 °C to 75 °C
- REACH/RoHS Compliant
General Information
Name: Genesis 31065512 22/6 Stranded Unshielded Cable, Plenum, CMP, FT6, 500' (152.4 m) Pull Box, Natural
Category: Genesis, Wire & Cable, Security & Access Control Cables, Plenum Unshielded Cables
UPC Code: 619172013147
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number WG-31065512 Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 31065512 Packaged Quantity 1 Product Model 31065512 Product Name 3106-55-12 Control Cable Product Type Access & Security Cable Weight 10.30 lb
-
American Wire Gauge 22AWG Cable Rating Plenum Cable Type Multi-conductor, Multi-pair Conductor Count 3 Conductor Material Bare Copper Core/Cladding Diameter 22/6 Device Supported Burglar Alarm, Intercom, Phone, Speaker Jacket Material LS PVC Jacket Type Riser Number of Conductors 6 Number of Pairs 3 Shielding No Solid or Stranded Stranded
-
TAA Compliant Yes
-
ADI Part Number Replaces RM-725186L1W Model Number Replaces 725186L1W
-

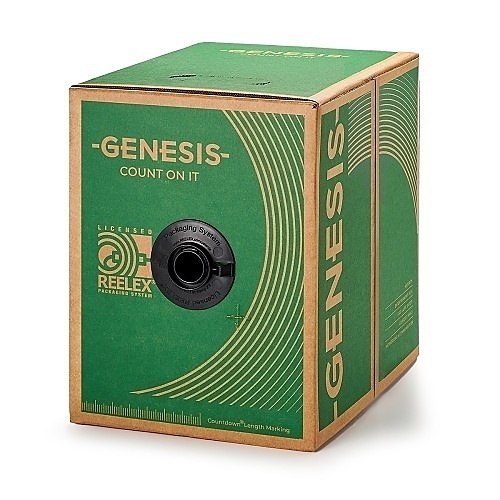

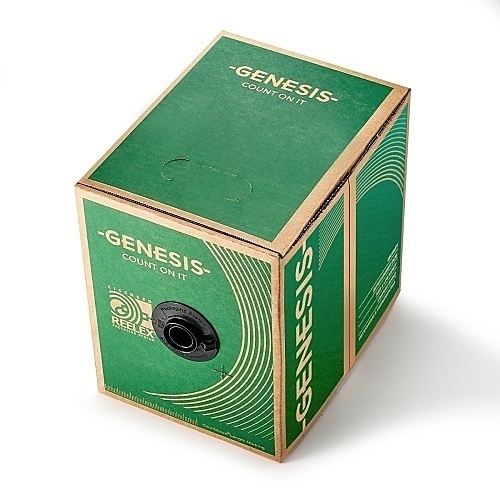

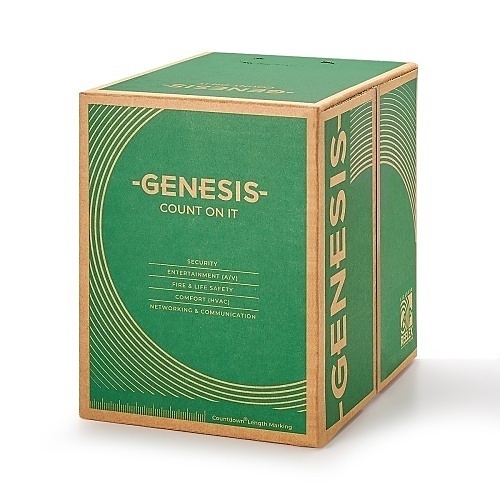

Cable Length 500' Color Natural Insulation Material LS-PVC Material Bare Copper Package Type Pull Box
-
Limited Warranty 3-Year
-
Country of Origin US Environmental Certification RoHS Features Stranded, Unshielded Indoor/Outdoor Indoor
