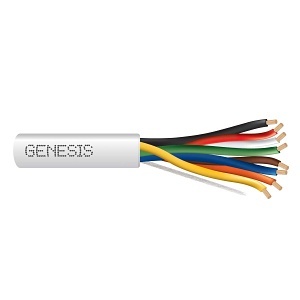

Genesis 31171012 18/8 Stranded Unshielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel, Natural
31171012|WG-31171012
Genesis 31171012 18/8 Stranded Unshielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel, Natural
31171012|WG-31171012
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Plenum PVC jacket
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Plenum PVC jacket
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Plenum PVC jacket
Genesis
Genesis 31171012 18/8 Stranded Unshielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel, Natural
31171012 | WG-31171012
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Genesis Unshielded Multiconductor Cables offer a versatile solution for various signal and limited-power transmission applications.
Main Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Plenum PVC jacket
- Durable rip cord for efficient jacket stripping and removal
- Countdown Length Markings for easy tracking of usage and remaining cable
- Rated for 300 Volts
- Rated for -20 °C to 75 °C
- REACH/RoHS Compliant
General Information
Name: Genesis 31171012 18/8 Stranded Unshielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel, Natural
Category: Genesis, Wire & Cable, Security & Access Control Cables, Plenum Unshielded Cables
UPC Code: 619172013994
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number WG-31171012 Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 31171012 Packaged Quantity 1 Product Model 31171012 Product Name 31171012 Control Cable Product Type Access & Security Cable Weight 53.60 lb
-
American Wire Gauge 18AWG Cable Rating Plenum Cable Type Multi-conductor, Multi-pair Conductor Count 4 Conductor Material Bare Copper Core/Cladding Diameter 18/8 Device Supported Burglar Alarm, Phone, Speaker Jacket Material LS PVC Jacket Type FT6, Plenum Number of Conductors 8 Number of Pairs 4 Shielding No Solid or Stranded Stranded
-
TAA Compliant Yes
-
Cable Length 1000' Color Natural Insulation Material LS-PVC Material Bare Copper Package Type Reel
-
Limited Warranty 3-Year
-
Country of Origin US Environmental Certification RoHS Features Stranded, Unshielded Indoor/Outdoor Indoor
