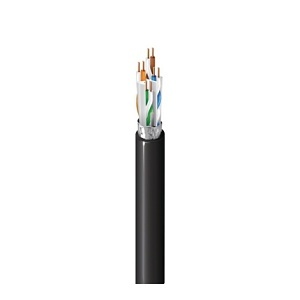

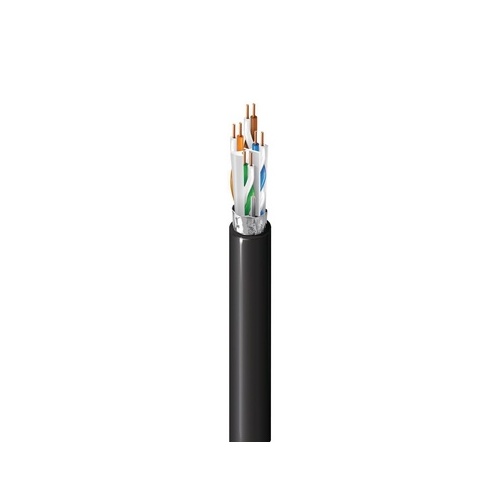

Belden 10GX52F 0101000 10GX CAT6A Enhanced Premise Horizontal Riser Cable, 4/23 Solid BC, Foil Shielded, F/UTP, CMR, Indoor, FT4, 1000' (304.8m), Spool, Black
Belden 10GX52F 0101000 10GX CAT6A Enhanced Premise Horizontal Riser Cable, 4/23 Solid BC, Foil Shielded, F/UTP, CMR, Indoor, FT4, 1000' (304.8m), Spool, Black
- Improved shape for easier handling
- Durable, lightweight, round construction
- Exceeds TIA standards for full 100 m channel
- Improved shape for easier handling
- Durable, lightweight, round construction
- Exceeds TIA standards for full 100 m channel
Sign In for Dealer Pricing
Become an ADI Customer- Improved shape for easier handling
- Durable, lightweight, round construction
- Exceeds TIA standards for full 100 m channel
Belden 10GX52F 0101000 10GX CAT6A Enhanced Premise Horizontal Riser Cable, 4/23 Solid BC, Foil Shielded, F/UTP, CMR, Indoor, FT4, 1000' (304.8m), Spool, Black
10GX52F 0101000 | 7B-10GX52F01
Please sign in to view pricing and availability and to add to cart.
Product Overview
The 10GX Shielded System provides 625 MHz of proven channel bandwidth and a data rate of 10G per second. With a thick, 100% coverage foil shield, your 10G of data is protected from harsh EMI environments.
Adding a shield to a high-performance Category 6A cable is not as easy as it seems. Any metallic shield changes the electrical performance of the cable; if the shield is not smooth, performance becomes unpredictable. Our design utilizes an inner and outer jacket to sandwich the foil into having a smooth surface.This eliminates adverse PSNEXT and RL effects seen with most other 10G cable products.
Main Features
- Improved shape for easier handling
- Durable, lightweight, round construction
- Exceeds TIA standards for full 100 m channel
- Superior crosstalk isolation and EMI suppression
- More uniform heat dissipation and transfer
- Eliminates length de-rating up to 60˚C
General Information
Specifications
-
ADI Part Number 7B-10GX52F01 Brand Name Belden Manufacturer Part Number 10GX52F 0101000 Packaged Quantity 305 Product Type Multi-Conductor Cables
-
American Wire Gauge 23AWG Cable Rating Riser Conductor Count 8 Conductor Material Bare Copper Device Supported Access and Security Cables Jacket Material PVC Jacket Type FT4 Number of Conductors 8 Number of Pairs 4 Shielding Yes Solid or Stranded Solid
-
Operating Temperature (T-T) 194°F Storage Temperature (T-T) -4-167°F
-
Cable Length 1000' Color Black Insulation Material PE, PO, PP Material PVC
-
Length 1000'
-
Country of Origin MX Environmental Certification China RoHS, RoHS, WEEE Indoor/Outdoor Indoor
